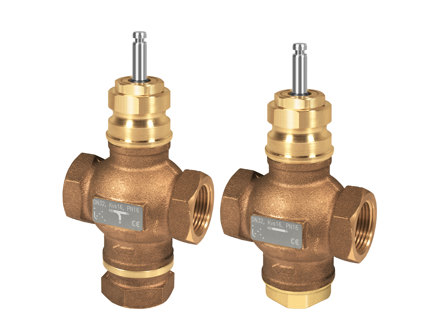

VFG2...N/VFG3 - 2- and 3-way internally threaded control valves

Valves, DN15-50 kvs 0.63-39, 20 mm stroke, designed for control of hot, cold or glycol-mixed water in heating and ventilation systems. They also function very well in domestic water systems. The valves are intended for use together with SE5... actuators. Valves with DN32-50 may also be used with SE10..., if a larger actuating force is required.

Specifications

Software & documentation

Accessories

Articles

(22 st)

VFG215N-0,63

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

0.63 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG315-1,6

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

1.6 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG215N-1,0

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

1 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG215N-1,6

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

1.6 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG215N-2,1

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

2.1 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG215N-2,7

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

2.7 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG220N-4,2

Connection

G 3/4"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN20

Kvs

4.2 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG220N-5,6

Connection

G 3/4"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN20

Kvs

5.6 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG225N-10

Connection

G 1"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN25

Kvs

10 m³/h

Max. diff. pressure

1400 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG232N-16

Connection

G 1 1/4"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN32

Kvs

16 m³/h

Max. diff. pressure

800 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG240N-27

Connection

G1" 1/2

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN40

Kvs

27 m³/h

Max. diff. pressure

600 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG250N-39

Connection

G 2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN50

Kvs

39 m³/h

Max. diff. pressure

400 kPa

Media temperature

-5…150 °C

Valve Type

2-Way
VFG315-0,63

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

0.63 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG315-1,0

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

1 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG315-2,1

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

2.1 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG315-2,7

Connection

G 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN15

Kvs

2.7 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG320-4,2

Connection

G 3/4"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN20

Kvs

4.2 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG320-5,6

Connection

G 3/4"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN20

Kvs

5.6 m³/h

Max. diff. pressure

1600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG325-10

Connection

G 1"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN25

Kvs

10 m³/h

Max. diff. pressure

1400 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG332-16

Connection

G 1 1/4"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN32

Kvs

16 m³/h

Max. diff. pressure

800 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG340-27

Connection

G 1 1/2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN40

Kvs

27 m³/h

Max. diff. pressure

600 kPa

Media temperature

-5…150 °C

Valve Type

3-Way
VFG350-39

Connection

G 2"

Actuator connection

Standard for RVAN5.../RVAN10... actuators

Rangeability

100:1

Nominal diameter

DN50

Kvs

39 m³/h

Max. diff. pressure

400 kPa

Media temperature

-5…150 °C

Valve Type

3-Way

Specifications

Specifications for VFG2...N/VFG3 - 2- and 3-way internally threaded control valves
Application	Heating, Cooling, Ventilation
Pressure rating	PN16
Connection types	BSP internally threaded according to ISO 228/1
Flow characteristics	Equal percentage
Leakage	0.1 % of Kvs ()
Media	Hot water, Cold water, Glycol-mixed water (max. 50 % glycol)
Stroke	20 mm
Closing direction	When stem is pulled outward
Media temperature	-5…150 °C
Body	Gunmetal CC491K
Seat	Gunmetal CC491K
Plug	Gunmetal CC491K
Stem	Stainless steel 1.4305
O-rings	EPDM
Stuffing box	Dezincification resistant brass CW511L

Software & documentation

Product sheet

VFG2…N/VFG3 (EN)
