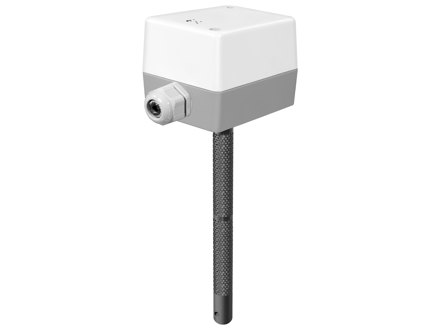

DBKH-10U Duct humidistat
Humidistat to be mounted in the duct.
Specifications
| Setpoint adjustment | Internal |
|---|---|
| Contact type | SPDT microswitch |
| Switching load | 15A (2A), 230 Vac; 0.25A, 230 Vdc |
| Sensitive element | Multi-layer synthetic polymer film |
| Measuring range, humidity | 30…100 %RH |
| Hysterisis, humidity | 3...5 % RH |
| Max air speed | 8 m/s |
| Appliance class | Class I |
|---|---|
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Ambient temperature | 0…60 °C |
| Storage temperature | -30…60 °C |
| Storage humidity | 0...95 % RH |
| Mounting | Duct |
| Dimensions, external (WxHxD) | 108x70x72 mm |
| Bulb length | 210 mm |
| Bulb diameter | 16 mm |
| Weight, incl. packaging | 0.48 kg |
| Material, housing | ABS |
| Electrical connection | Screw terminal |
| Cable inlet | Cable gland M20x1.5, cable Ø6 - 13mm |
