Discontinued - Valve actuators 600 N
This product is discontinued
This product is discontinued

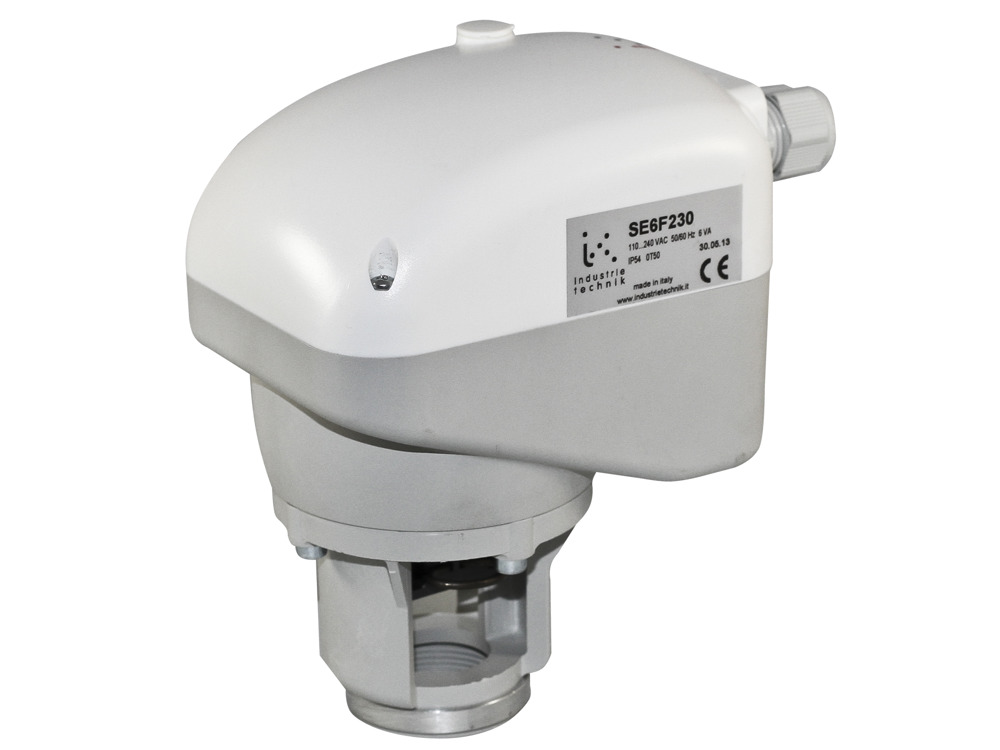

Electric actuator are suitable for driving VFS / VFSF valves.
The actuator is equipped with manual override by a hexagonal key and with a torque limit device to power off the motor when end stops are reached. The SE6M24 has an additional feedback signal output.
An internal LED indicates the current state of the actuator: adjustment, control, end stop position, error condition.
Articles
(0 st)Specifications
| Ambient temperature | 0…50°C |
|---|---|
| Ambient humidity | 10...90 % RH (non-condensing) |
| Storage temperature | -20…+70°C |
| Closing/opening time | ~ 80 s |
| Auxiliary switch | 3(1) A 230 V AC |
| Connection | Cable section 1 mm 2 length 1 m |
| Material, casing | Matt polycarbonate |
| Material, casing base | PA6 V0 |
| Bracket | PA6 30 GF V0, max. working temp.: -30…+140 °C Traction breaking load: 1500 kg/cm 2 |
| Weight | 470 g |
| Dimensions | 112 x 82 x 148mm |
| Protection class | IP54 |
| Isolation class | II (SE6F230) III (SE6M24, SE6F24) |
