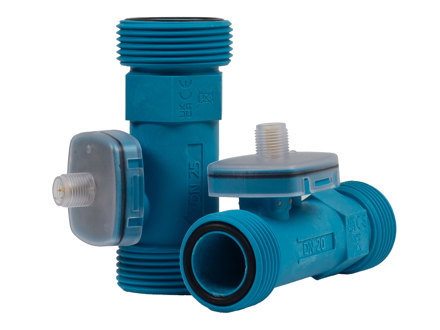

Liquid flowmeter
The MF series Vortex flowmeters are innovative devices designed to provide high accuracy and reliability in liquid flow rate measurements.
These flowmeters offer several advantages, including:
- High precision
- Low pressure drops
- Easy installation
- Maintenance-free operation due to the absence of moving parts
The body of the flowmeter is made of PA6, reinforced with 30% glass fiber, ensuring durability and strength.
The sizes of the flowmeters cover the range required by most heating or cooling systems, from 5 to 150 l/min.
Each flowmeter comes standard with an LED status indicator, Modbus connectivity, and an integrated temperature sensor (optional), providing the possibility of using it as an energy meter.
Articles
(10 st)-
MF20G0100C- Mounting
- Pipe
- Nominal diameter
- DN20
- Connection
- G1 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 5...80 l/min
- Accuracy [Flow]
- ±1% FS
- Repeatability [Flow]
- ±1%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- 4...20 mA
-
MF20G0100M
- Mounting
- Pipe
- Nominal diameter
- DN20
- Connection
- G1 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 5...80 l/min
- Accuracy [Flow]
- ±1% FS
- Repeatability [Flow]
- ±1%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- Modbus
-
MF20G0100V
- Mounting
- Pipe
- Nominal diameter
- DN20
- Connection
- G1 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 5...80 l/min
- Accuracy [Flow]
- ±1% FS
- Repeatability [Flow]
- ±1%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- 0...10 V DC
-
MF20GT100M
- Mounting
- Pipe
- Nominal diameter
- DN20
- Connection
- G1 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 5...80 l/min
- Accuracy [Flow]
- ±1% FS
- Repeatability [Flow]
- ±1%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- Modbus
-
MF20GT100V
- Mounting
- Pipe
- Nominal diameter
- DN20
- Connection
- G1 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 5...80 l/min
- Accuracy [Flow]
- ±1% FS
- Repeatability [Flow]
- ±1%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- 0...10 V DC
-
MF25G0100C
- Mounting
- Pipe
- Nominal diameter
- DN25
- Connection
- G1 1/4 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 10...150 l/min
- Accuracy [Flow]
- ±2% FS
- Repeatability [Flow]
- ±1.5%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- 4...20 mA
-
MF25G0100M
- Mounting
- Pipe
- Nominal diameter
- DN25
- Connection
- G1 1/4 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 10...150 l/min
- Accuracy [Flow]
- ±2% FS
- Repeatability [Flow]
- ±1.5%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- Modbus
-
MF25G0100V
- Mounting
- Pipe
- Nominal diameter
- DN25
- Connection
- G1 1/4 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 10...150 l/min
- Accuracy [Flow]
- ±2% FS
- Repeatability [Flow]
- ±1.5%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- 0...10 V DC
-
MF25GT100M
- Mounting
- Pipe
- Nominal diameter
- DN25
- Connection
- G1 1/4 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 10...150 l/min
- Accuracy [Flow]
- ±2% FS
- Repeatability [Flow]
- ±1.5%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- Modbus
-
MF25GT100V
- Mounting
- Pipe
- Nominal diameter
- DN25
- Connection
- G1 1/4 (ISO 228), male thread
- Max pressure
- 1000 kPa
- Flow rate
- 10...150 l/min
- Accuracy [Flow]
- ±2% FS
- Repeatability [Flow]
- ±1.5%
- Power supply
- 12...24 V DC ±10%
- Consumption
- <1 VA
- Flow output
- 0...10 V DC
Specifications
| Protection class | IP65 |
|---|---|
| Protection class, additional information | with installed connector |
| Storage temperature | -20…70 °C |
| Weight, incl. packaging | 0.07 kg |
| Media | Water or aqueous solutions |
| Material, housing | PA6 + 30% GF |
