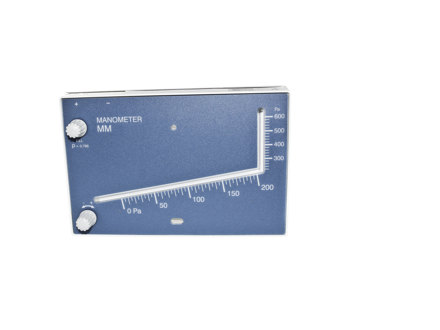

DB-M6 Manometers and air differential pressure switches
Differential pressure visualization of air or non-aggressive and non-inflammable gases.
The compact unit consists of:
- a differential manometer with an inclined liquid pipe, complete of tank to allow temporary overpressure;
- a bottle containing indication liquid and 2 stickers (red/green);
- PVC hose Ø 4 x 7 - 2.2 m length, pipes and fixing screws.
Specifications
| Pressure, range sensor 1 | 0…600 Pa |
|---|---|
| Max. allowed diff. Pressure sensor 1 | 200 kPa |
| Appliance class | Class II |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | -40…60 °C |
| Dimensions, external (WxHxD) | 210x140x64 mm |
| Weight, incl. packaging | 0.4 kg |
| Media | Air or non aggressive gases |
| Material, housing | ABS, PMMA, PC |
