Industrietechnik

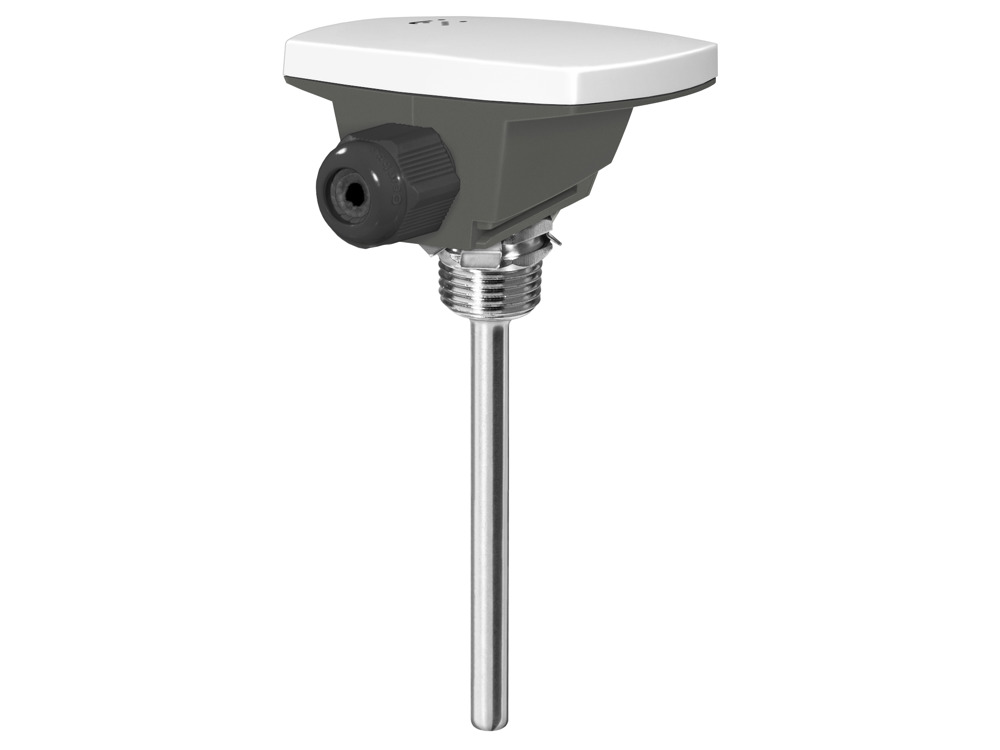

STI-NTC10-01 Immersion sensor with housing and well
This article is discontinued
The sensor part has a clip fastening which makes it easy to mount.
Specifications
| Sensor element | NTC 10 |
|---|---|
| Nominal resistance | 10 kΩ (25°C) |
| Temperature range | -20...+120 °C |
| Equivalent | Aquatrol - Johnson Controls - Satchwell - Trend - Cylon - Honeywell |
| _Article Industrietechnik | STI-NTC10-01 |
| Temperature range | -20…+120°C |
|---|---|
| Cable gland | M16 |
| Time constant | 18s |
| Insertion length | 90mm |
| Connection, well | R1/2" |
| Material, probe and well | Stainless steel |
| Diameter, well | 8mm |
| Pressure rating | PN25 |
| Dimensions | 93 x 70 x 150mm |
| Protection class | IP65 |
