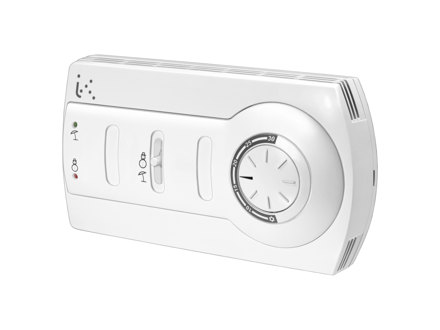

Room controllers for 2 or 4 pipe system, 0...10 V output
2- or 4-pipe fan coil control for room temperature.
Articles
(1 st)-
DB-TA-335-993- Setpoint knob
- Yes
- Sensor
- NTC100K
- Setpoint
- +5...+30 °C; mechanical limitation of the setpoint adjustment
- Differential
- 0.5 K
- Dead zone
- 1...4 for 4 pipe K
- Proportional band
- 1...5 K
- System (pipe)
- 2 or 4
- Winter / Summer
- manual
Specifications
| Appliance class | Class II |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | 0…40 °C |
| Storage temperature | -20…70 °C |
| Storage humidity | 0...95 % RH |
| Mounting | Room, Wall |
| Dimensions, external (WxHxD) | 144x82x34 mm |
| Weight, incl. packaging | 0.21 kg |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | ABS |
| Colour, housing | RAL9010 |
| Power supply | 24 V AC ±10%, 50/60 Hz |
| Power consumption | 1 W |
