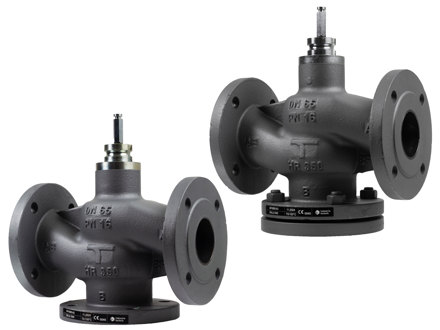

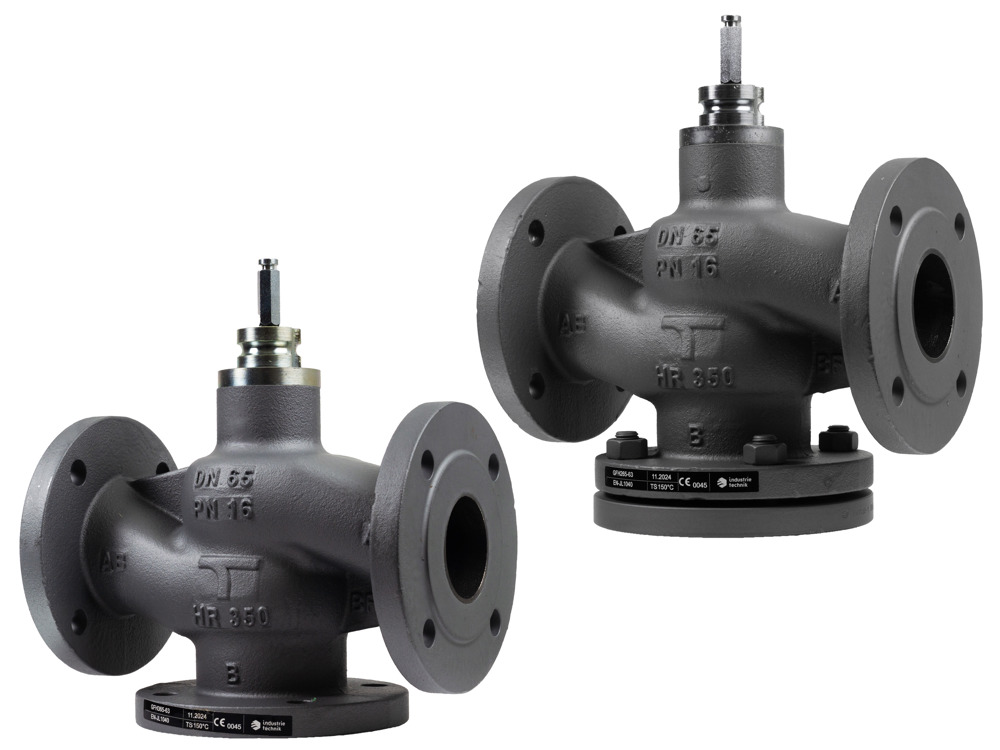

GFH - 2- and 3-way control valves, DN15-150, kvs 2.5-315, DIN-standard
Industrietechnik

GFH - 2- and 3-way control valves, DN15-150, kvs 2.5-315, DIN-standard

Control valves for use in heating, cooling and ventilation systems. They are intended to be used together with Regin’s RVAN actuators. The valves have DIN-standard lengths.

Specifications
Software & documentation
Accessories

Articles

(40 st)
  • GFH215-2.5 - Regin
    GFH215-2.5
    Rangeability
    50:1
    Stroke
    14 mm
    Nominal diameter
    DN15
    Kvs
    2.5 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH215-4.0 - Regin
    GFH215-4.0
    Rangeability
    50:1
    Stroke
    14 mm
    Nominal diameter
    DN15
    Kvs
    4 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH220-5.0 - Regin
    GFH220-5.0
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN20
    Kvs
    5 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH220-6.3 - Regin
    GFH220-6.3
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN20
    Kvs
    6.3 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH225-10 - Regin
    GFH225-10
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN25
    Kvs
    10 m³/h
    Max. diff. pressure
    1500 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH225-8.0 - Regin
    GFH225-8.0
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN25
    Kvs
    8 m³/h
    Max. diff. pressure
    1500 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH232-12.5 - Regin
    GFH232-12.5
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN32
    Kvs
    12.5 m³/h
    Max. diff. pressure
    900 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH232-16 - Regin
    GFH232-16
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN32
    Kvs
    16 m³/h
    Max. diff. pressure
    900 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH240-20 - Regin
    GFH240-20
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN40
    Kvs
    20 m³/h
    Max. diff. pressure
    550 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH240-25 - Regin
    GFH240-25
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN40
    Kvs
    25 m³/h
    Max. diff. pressure
    550 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH250-31.5 - Regin
    GFH250-31.5
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN50
    Kvs
    31.5 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH250-40 - Regin
    GFH250-40
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN50
    Kvs
    40 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH265-50 - Regin
    GFH265-50
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN65
    Kvs
    50 m³/h
    Max. diff. pressure
    600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH2100-125 - Regin
    GFH2100-125
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN100
    Kvs
    125 m³/h
    Max. diff. pressure
    250 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH2100-160 - Regin
    GFH2100-160
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN100
    Kvs
    160 m³/h
    Max. diff. pressure
    250 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH265-63 - Regin
    GFH265-63
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN65
    Kvs
    63 m³/h
    Max. diff. pressure
    600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH280-100 - Regin
    GFH280-100
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN80
    Kvs
    100 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH2125-250 - Regin
    GFH2125-250
    Rangeability
    100:1
    Stroke
    50 mm
    Nominal diameter
    DN125
    Kvs
    250 m³/h
    Max. diff. pressure
    160 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH2150-315 - Regin
    GFH2150-315
    Rangeability
    100:1
    Stroke
    50 mm
    Nominal diameter
    DN150
    Kvs
    315 m³/h
    Max. diff. pressure
    120 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH280-80 - Regin
    GFH280-80
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN80
    Kvs
    80 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH315-2.5 - Regin
    GFH315-2.5
    Rangeability
    50:1
    Stroke
    14 mm
    Nominal diameter
    DN15
    Kvs
    2.5 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH315-4.0 - Regin
    GFH315-4.0
    Rangeability
    50:1
    Stroke
    14 mm
    Nominal diameter
    DN15
    Kvs
    4 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH320-5.0 - Regin
    GFH320-5.0
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN20
    Kvs
    5 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH320-6.3 - Regin
    GFH320-6.3
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN20
    Kvs
    6.3 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH325-10 - Regin
    GFH325-10
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN25
    Kvs
    10 m³/h
    Max. diff. pressure
    1500 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH325-8.0 - Regin
    GFH325-8.0
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN25
    Kvs
    8 m³/h
    Max. diff. pressure
    1500 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH332-12.5 - Regin
    GFH332-12.5
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN32
    Kvs
    12.5 m³/h
    Max. diff. pressure
    900 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH332-16 - Regin
    GFH332-16
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN32
    Kvs
    16 m³/h
    Max. diff. pressure
    900 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH340-20 - Regin
    GFH340-20
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN40
    Kvs
    20 m³/h
    Max. diff. pressure
    550 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH340-25 - Regin
    GFH340-25
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN40
    Kvs
    25 m³/h
    Max. diff. pressure
    550 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH350-31.5 - Regin
    GFH350-31.5
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN50
    Kvs
    31.5 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH350-40 - Regin
    GFH350-40
    Rangeability
    100:1
    Stroke
    14 mm
    Nominal diameter
    DN50
    Kvs
    40 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN5, RVAN10
  • GFH365-50 - Regin
    GFH365-50
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN65
    Kvs
    50 m³/h
    Max. diff. pressure
    600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH365-63 - Regin
    GFH365-63
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN65
    Kvs
    63 m³/h
    Max. diff. pressure
    600 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH380-100 - Regin
    GFH380-100
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN80
    Kvs
    100 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH3100-160 - Regin
    GFH3100-160
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN100
    Kvs
    160 m³/h
    Max. diff. pressure
    250 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH3125-250 - Regin
    GFH3125-250
    Rangeability
    100:1
    Stroke
    50 mm
    Nominal diameter
    DN125
    Kvs
    250 m³/h
    Max. diff. pressure
    160 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH380-80 - Regin
    GFH380-80
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN80
    Kvs
    80 m³/h
    Max. diff. pressure
    350 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH3100-125 - Regin
    GFH3100-125
    Rangeability
    100:1
    Stroke
    30 mm
    Nominal diameter
    DN100
    Kvs
    125 m³/h
    Max. diff. pressure
    250 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25
  • GFH3150-315 - Regin
    GFH3150-315
    Rangeability
    100:1
    Stroke
    50 mm
    Nominal diameter
    DN150
    Kvs
    315 m³/h
    Max. diff. pressure
    120 kPa
    Media temperature
    -10…150 °C
    Actuator
    RVAN18, RVAN25

Specifications

Specifications for GFH - 2- and 3-way control valves, DN15-150, kvs 2.5-315, DIN-standard
Application Heating, Cooling, Ventilation
Pressure rating PN16
Connection types Flanged according to EN 1092-2
Flow characteristics Equal percentage
Leakage 0.0 % of Kvs (No leakage), 0.05 % of Kvs ()
Media Hot water, Cold water, Glycol-mixed water (max. 50 % glycol)
Closing direction When stem is pulled outward
Actuator connection Standard for RVAN5.../RVAN10... actuators, Standard for RVAN18.../RVAN25... actuators
Media temperature -10…150 °C
Body Grey cast iron EN-GJL-250, EN-JL1040
Seat Grey cast iron EN-GJL-250, EN-JL1040
Plug Brass CW614N
Stem Stainless steel 1.4122
O-rings EPDM
Stuffing box Brass CW614N

Software & documentation

Product sheet
Other documentation

Accessories

RVAN5-230
Regin RVAN5-230

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
500 N
Supply voltage
230 V AC
Control signal
3-point
RVAN10-230
Regin RVAN10-230

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
1000 N
Supply voltage
230 V AC
Control signal
3-point
RVAN18-230
Regin RVAN18-230

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
1800 N
Supply voltage
230 V AC
Control signal
3-point
RVAN25-230
Regin RVAN25-230

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
2500 N
Supply voltage
230 V AC
Control signal
3-point
RVAN5-24A
Regin RVAN5-24A

Valve actuator

Force
500 N
Supply voltage
24 V AC/DC
Control signal
0(2)…10 V DC or 0(4)…20 mA
RVAN10-24A
Regin RVAN10-24A

Valve actuator

Force
1000 N
Supply voltage
24 V AC/DC
Control signal
0(2)…10 V DC or 0(4)…20 mA
RVAN18-24A
Regin RVAN18-24A

Valve actuator with automatic stroke adjustment for control of Regin’s range of valves. Available in models with…

Force
1800 N
Supply voltage
24 V AC/DC
Control signal
0(2)…10 V DC or 0(4)…20 mA
RVAN25-24A
Regin RVAN25-24A

Valve actuator

Force
2500 N
Supply voltage
24 V AC/DC
Control signal
0(2)…10 V DC or 0(4)…20 mA
RVAN5-24
Regin RVAN5-24

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
500 N
Supply voltage
24 V AC
Control signal
3-point
RVAN10-24
Regin RVAN10-24

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
1000 N
Supply voltage
24 V AC
Control signal
3-point
RVAN18-24
Regin RVAN18-24

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
1800 N
Supply voltage
24 V AC
Control signal
3-point
RVAN25-24
Regin RVAN25-24

Valve actuator for control of Regin’s range of valves. Available in models with actuator force of 500, 1000, 1800…

Force
2500 N
Supply voltage
24 V AC
Control signal
3-point
