2-way flanged ball valves, DN65-100

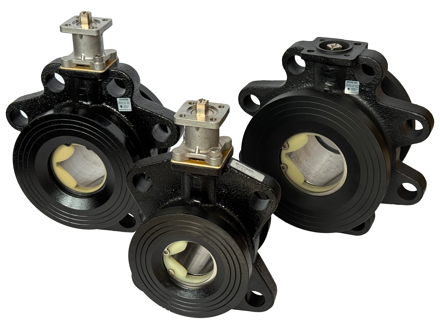

BVH series flanged ball valves designed for control of hot, cold or glycol-mixed water in heating and ventilation systems. The valves are intended for use with Industrietechnik damper actuators through an adaptor bracket.

Specifications
Software & documentation

Articles

(3 st)
  • BVH265 - Regin
    BVH265
    Rangeability
    100:1
    Nominal diameter
    DN65
    Kvs
    63 m³/h
    Max. diff. pressure
    660 kPa
    Max. start-up pressure
    350 kPa
    Valve Type
    2-Way
  • BVH280 - Regin
    BVH280
    Rangeability
    100:1
    Nominal diameter
    DN80
    Kvs
    100 m³/h
    Max. diff. pressure
    660 kPa
    Max. start-up pressure
    350 kPa
    Valve Type
    2-Way
  • BVH2100 - Regin
    BVH2100
    Rangeability
    100:1
    Nominal diameter
    DN100
    Kvs
    160 m³/h
    Max. diff. pressure
    660 kPa
    Max. start-up pressure
    350 kPa
    Valve Type
    2-Way

Specifications

Specifications for 2-way flanged ball valves, DN65-100
Application Ventilation, Heating
Pressure rating PN16
Connection types Flanged according to
Flow characteristics Equal percentage
Leakage 0.0 % of Kvs (No leakage)
Media Hot water, Cold water, Glycol-mixed water (max. 50 % glycol)
Angle of rotation 90 °
Body Grey cast iron EN-GJL-250, EN-JL1040
Seat PTFE
Stem Stainless steel 1.4305
Ball Chromed brass CW614N
O-rings EPDM
