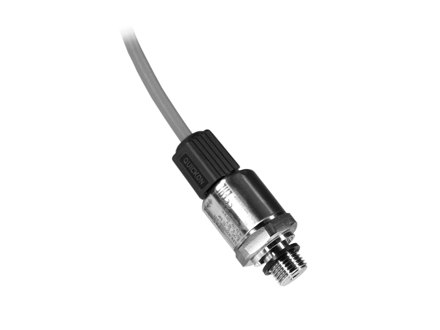

TPGL6-420 Pressure transmitter for liquids and gases
Pressure transmitter for measurement of liquids and gases.
Specifications
| Power Supply | 7...33 Vdc |
|---|---|
| Analogue output load impedance 4...20mA | ((Supply voltage - 7 V) / 0.02 A) Ω |
| Measuring range | 0...600 kPa |
| Max. overload pressure | 1500 kPa |
| Accuracy, resolution sensor | 0.1 % full scale |
| Accuracy, long-term stability according to IEC EN 60770-1 | Max. ±0.25 % full scale |
| Output signal | 4-20 mA |
| Current consumption | < 23 mA |
| Protection class | IP67 |
|---|---|
| Ambient temperature | -30…85 °C |
| Storage temperature | -50…100 °C |
| Bulb length | 47.5 mm |
| Bulb diameter | 24 mm |
| Weight, incl. packaging | 0.9 kg |
| Media | Liquids and gases |
| (Well/Pressure) connection | G 1/4 " |
| Cable | 1.5 m two-wire |
| Pressure connection | Outside thread |
| Dynamic response time | < 2 ms, 1 ms typically |
| Media temperature | -15…+125°C |
| Material sealing | FPM |
