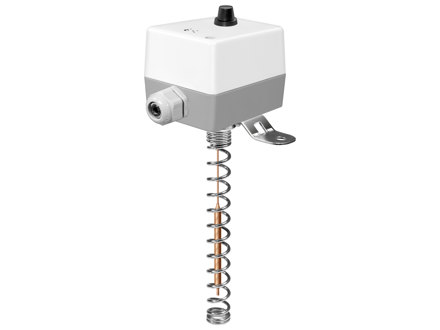

TZR6585 Duct thermostat, IP54
A range of high quality duct thermostats.
Specifications
| Sensor element | Liquid-filled copper capillary with 200 mm protection spring |
|---|---|
| Probe insertion length | 200 / Ø 21 mm |
| Electrical contact | SPDT microswitch |
| Switching capacity | NC 16 (2.5) A, 250 V AC / NO 0.5 A, 250 V AC |
| Setpoint value, temperature range | 65...85 °C |
| Hysteresis, temperature | 20±5 K |
| Reset function | Manual |
| Setpoint adjustment | Internal |
| Dimensions, external (WxHxD) | 70x86x108 mm |
| Measurand | Temperature |
| Medium | Air/Gas |
| Mounting | Duct |
| Reset function | Manual |
| Conformity | CE |
| Sensor element | Liquid-filled copper capillary with 200 mm protection spring |
|---|---|
| Max. probe temperature | 125 °C |
| Probe insertion length | 200 / Ø 21 mm |
| Switching capacity | NC 16 (2.5) A, 250 V AC / NO 0.5 A, 250 V AC |
| Appliance class | Class I |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…70 °C |
| Storage humidity | 10...95 % RH |
| Weight, incl. packaging | 0.59 kg |
| Material, cover | ABS |
| Material, base | PC+ABS blend (Bayblend®) |
Software & documentation
Accessories
- Fixing stopper for capillary
- Spiral protection bracket
