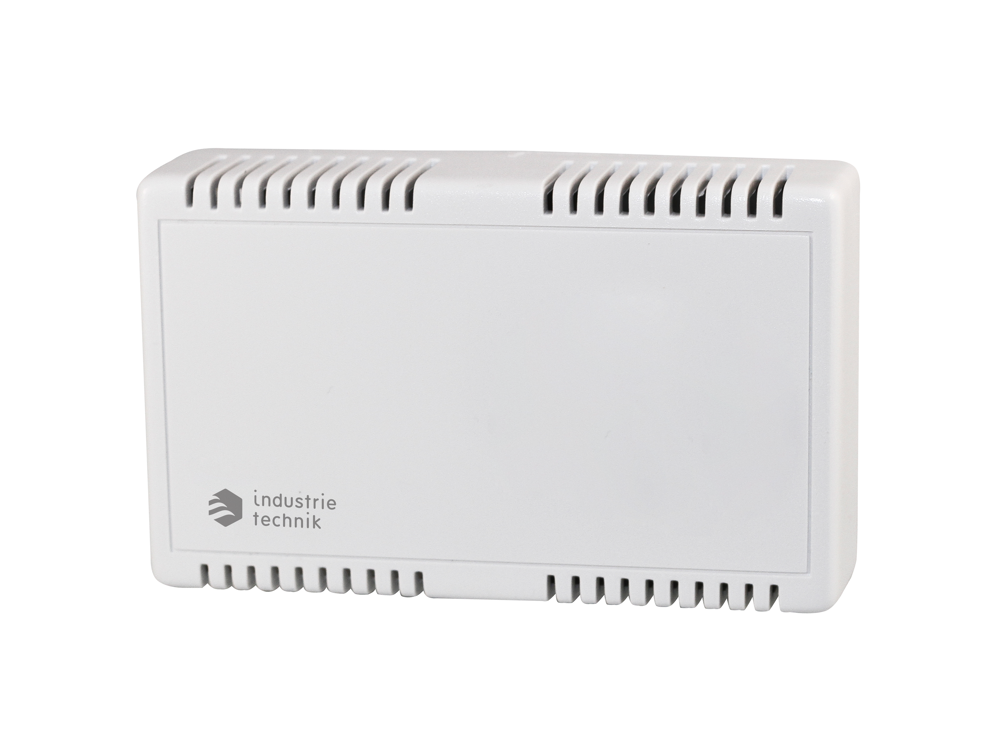

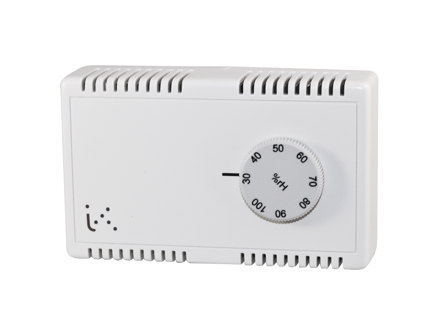

DBZH-101U Room humidistat
Electromechanical humidistat for room mounting with synthetic element.
Specifications
| Setpoint adjustment | Internal |
|---|---|
| Dimensions, external (WxHxD) | 115x70x35 mm |
| Medium | Air/Gas |
| Mounting | Wall/(Room) |
| Reset function | Automatic |
| Conformity | CE |
| Contact type | SPDT microswitch |
| Switching load | Dehumidifying 5A (1A) 230 Vac; Humidifying 2A (1A) 230 Vac |
| Electrical connection | Screw terminal |
| Sensitive element | Multi-layer synthetic polymer film |
| Measuring range, humidity | 30…100 %RH |
| Hysterisis, humidity | 3...5 % RH |
| Max air speed | 8 m/s |
| Appliance class | Class II |
|---|---|
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…60 °C |
| Storage humidity | 0...95 % RH |
| Mounting | Room |
| Weight, incl. packaging | 0.13 kg |
| Material, housing | ABS |
| Colour, housing | RAL 9010 |
