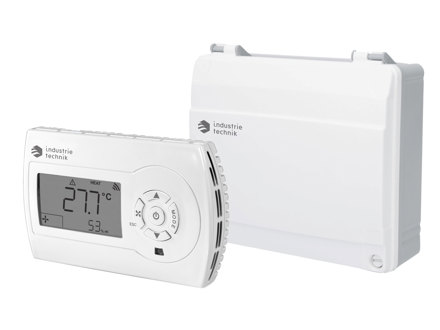

Evolution Split THS2
The Evolution Split series devices allow control of up to 14 THS2-0MM units configured as slaves through a THS2-0MM unit configured as master. The THS2-0MM is equipped with a second Modbus communication port, which can be connected to a Scada system or to the optional THS2 display unit.
When the THS2 display unit is connected to a THS2-0MM master, it enables full management of all parameters and display of the network status; when connected to a THS2-0MM slave, it allows control of only the main operating parameters, namely on/off, setpoint, and fan coil speed. The Evolution Split THS2-0MM can control 3-speed fan coils or EC motor fans, on/off valves, modulating valves, or 3-point valves. Finally, the AHS2 display unit is equipped with an integrated clock, allowing the setting of up to 4 daily time schedules.
Specifications
| Appliance class | Class II |
|---|---|
| Protection class | IP30 |
| Ambient temperature | 0…50 °C, 0…40 °C |
| Mounting | Room, Wall, Wall |
| Dimensions, external (WxHxD) | 128x80x28 mm, 140x121x47 mm |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C |
| Terminal type | Screw Terminal |
| Power supply, THS2 | 5 Vdc provided byTHS2-0MM unit |
| Power supply, THS2-0MM | 110...240 Vac, 50/60 Hz |
| Power consumption, THS2-0MM | Max. 1.1 W (3.5VA) THS2-0MM (with power supply from THS2 unit) |
| Display | LCD with backlight |
| Dimensions, THS2 | 128x80x28.5 mm |
| Dimensions, THS2-0MM | 140x121.5x47 mm |
| Power consumption | 1.1 W |
