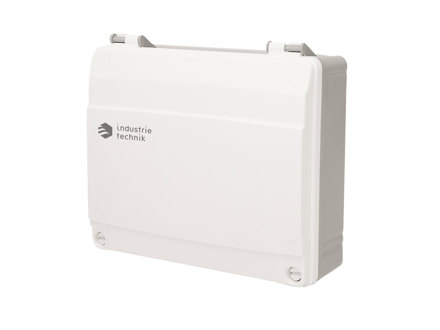

THS2-0MM Evolution Split THS2-0MM
THS2-0MM is a configurable master / slave unit from the Evolution Split Series. If configured as master, it can be connected to other THS2-0MM units configured as slaves ( in total 14 slave units).
The unit can manage 3-speed fan coils or fans with EC motor, on / off valves, modulating valves or 3-point valves.
THS2-0MM is equipped with a second Modbus communication port where it can be connected to a Scada system or an optional THS2 display unit, allowing the settings of the operating parameters for the entire internal network and the display of the operating status of all units.
Specifications
| Communication | Internal network, Modbus RTU (Master or Slave) |
|---|---|
| Internal sensor | -- |
| AI | 2 |
| DI | 2 |
| AO | 3 |
| DO | 6 |
| Clock | -- |
| Appliance class | Class II |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | 0…40 °C |
| Storage temperature | -20…70 °C |
| Mounting | Wall |
| Dimensions, external (WxHxD) | 140x121x47 mm |
| Power supply, THS2 | 5 Vdc provided byTHS2-0MM unit |
| Power supply, THS2-0MM | 110...240 Vac, 50/60 Hz |
| Power consumption, THS2-0MM | Max. 1.1 W (3.5VA) THS2-0MM (with power supply from THS2 unit) |
| Power consumption | 1.1 W |
| Dimensions, THS2 | 128x80x28.5 mm |
| Dimensions, THS2-0MM | 140x121.5x47 mm |
