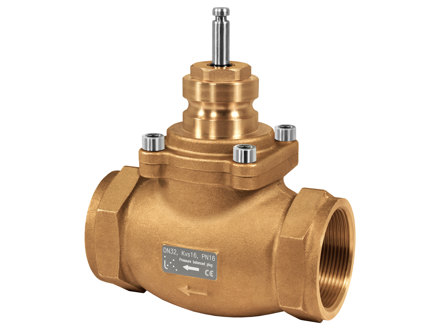

VFG250-39 VFG2, Internally Threaded 2-Way Control Valves, DN15–50
Valves, DN15-50, kvs 0.6-39, 20 mm stroke, designed for control of hot, cold or glycol-mixed water in heating and ventilation systems. They are pressure balanced (from DN20-50, not DN15) and can therefore handle high differential pressure with low force. The valves are intended to be used together with Industrietchnik’s RVAN5 actuators. They should not be used in domestic water systems.
Specifications
| Connection | G 2" (ISO 228-1) F |
|---|---|
| Rangeability | 100:1 |
| Stroke | 20 mm |
| Nominal diameter | DN50 |
| Kvs | 39 m³/h |
| Max. diff. pressure | 1600 kPa |
| Media temperature | -5…140 °C |
| Valve Type | 2-Way |
| Actuator | RVAN5 |
| Application | Heating, Cooling, Ventilation |
|---|---|
| Pressure rating | PN16 |
| Connection types | BSP internally threaded according to ISO 228/1 |
| Flow characteristics | Equal percentage |
| Leakage | 0.0 % of Kvs (PTFE gasket, carbon-filled 25 %, no leakage) |
| Media | Hot water, Cold water, Glycol-mixed water (max. 50 % glycol) |
| Closing direction | When stem is pushed inward |
| Media temperature | -5…140 °C |
| Body | Brass CW614N |
| Seat | Brass CW614N |
| Plug | Stainless steel 1.4301 |
| Stem | Stainless steel 1.4305 |
| Seat packing | PTFE (carbon filled 25 %) |
| O-rings | EPDM |
| Stuffing box | Brass CW614N |
Software & documentation
Product sheet
Other documentation
Accessories
Industrietechnik
IS6321457301
Spare parts kit, packing box, for BTV valves from DN32 to DN50 (until 2018-12) and FRS valves.
Industrietechnik
IS02420001
Spare parts kit, O-ring kit for BTV valves from DN15 to DN25 (until 2018-12)
