Industrietechnik

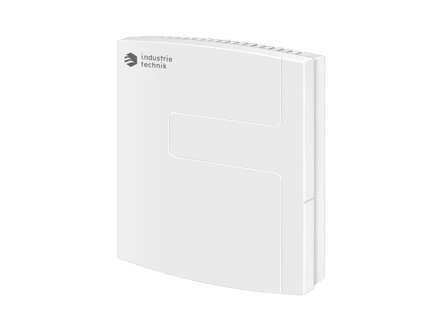

TTA-M Temperature transmitter for room mounting, 0…10 V and Modbus
Temperature transmitter
Specifications
| Measuring range, temp | 0…50 °C |
|---|---|
| Output temperature | Modbus |
| Power Supply | 24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), VA |
|---|---|
| Appliance class | Class III |
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | 0…50 °C |
| Mounting | Room, Wall |
| Dimensions, external (WxHxD) | 100x85x30 mm |
| Accuracy, temperature | ±0.4 K |
| Terminal type | Screw Terminal |
| Terminal wire size | 0.75 mm² |
| Power consumption | < 1 W |
| Transformer power | ≤2 VA |
| Power supply | 24 Vac ±10% / 15...35 Vdc |
