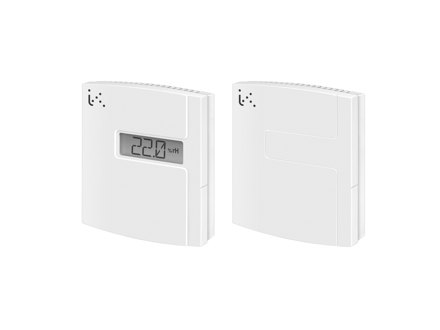

TTUA-CD Humidity and temperature transmitter for room mounting, 4…20 mA
Humidity and temperature transmitter with display
Specifications
| Mounting | Room |
|---|---|
| Dimensions, external (WxHxD) | 100x85x30 mm |
| Display | Yes |
| Measuring range, temp | 0…50 °C |
| Output temperature | 4-20 mA (2 wire) |
| Measuring range, humidity | 0…100 % RH |
| Output humidity | 4-20 mA (2 wire) |
| Appliance class | Class III |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -25…60 °C |
| Mounting | Room |
| Accuracy, temperature 1 | ± °K @ 0... °C |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Colour, housing | Signal white RAL 9003 |
