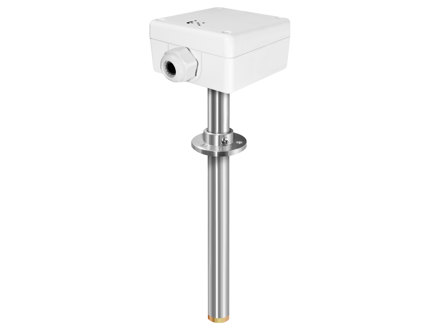

DB-KLQ5 Duct air quality transmitters, VOC
Analysis of the air quality based on a mixed gas VOC (Volatile Organic Compounds) sensor.
Detectable gases:
- carbon monoxide CO
- hydrogen sulfide H2S
- solvent vapours
- cigarette smoke
- car exhaust
- air produced by human breathing
- combustion smoke from wood, paper and plastics.
Specifications
| Mounting | Duct |
|---|---|
| Dimensions, external (WxHxD) | 65x59x36 mm |
| Tube length | 20.6 cm |
| Tube diameter | 16 mm |
| Insertion length | 60…206 mm |
| Sensor type | VOC |
| Warm-up time | 60 min |
| Output signal | 0...5 V DC; 0...20 mA; 4...20 mA selectable by switch |
| Appliance class | Class III |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…50 °C |
| Storage humidity | 0...95 % RH |
| Mounting | Duct |
| Weight, incl. packaging | 0.26 kg |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
