Regin

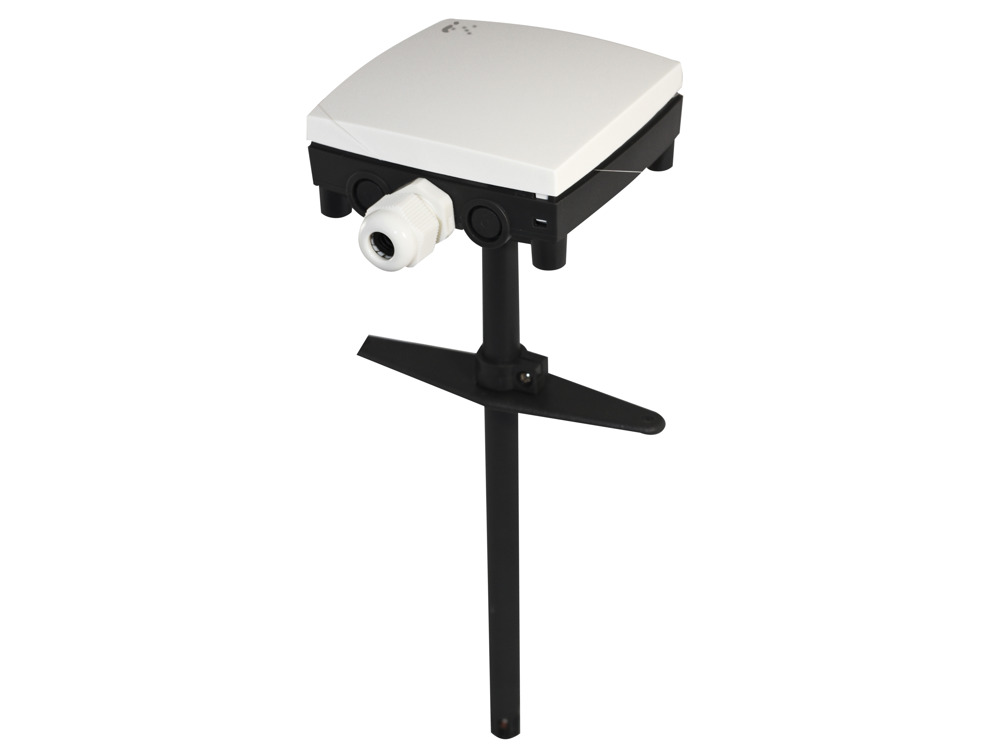

AVDT25N Air velocity transmitter
Air velocity transmitter
Specifications
| Dimensions, external (WxHxD) | 90x255x85 mm |
|---|---|
| Max air velocity | 20 m/s |
| Insertion length | 20…200 mm |
| Time constant | 1,5 s at 10 m/s s |
| Analogue output load impedance 0...10v | > 10 kΩ |
| Analogue output load impedance 4...20mA | < 500 Ω |
| Accuracy | Range 0.2...10 m/s ±(0.2 m/s + 3% of value) |
| Response time | Selectable 0.7 or 4 s s |
| Output | 0...10 V DC or 4...20 mA, selectable |
| Protection class | IP65 |
|---|---|
| Storage temperature | -30…60 °C |
| Mounting | Duct |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
