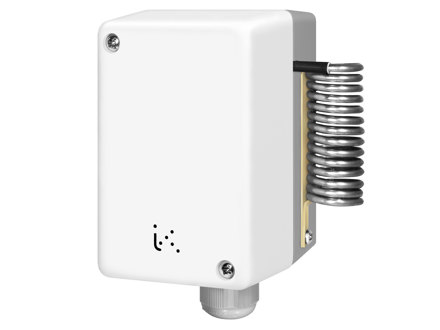

ET060U Room thermostats with fixed hysteresis, IP 54
A wide range of low cost room thermostats for wall mounting.
Specifications
| Sensor element | Liquid-filled nickel-plated copper capillary |
|---|---|
| Electrical contact | SPDT microswitch |
| Switching capacity | NC 16 (6) A, 250 V AC / NO 6 (4) A, 250 V AC |
| Dimensions, external (WxHxD) | 96x72x108 mm |
| Setpoint value, temperature range 1 | 0...60 °C |
| Hysteresis range 1, temperature | 1.5±1 K |
| Measurand | Temperature |
| Medium | Air/Gas |
| Mounting | Wall/(Room) |
| Reset function | Automatic |
| Conformity | CE |
| Sensor element | Liquid-filled nickel-plated copper capillary |
|---|---|
| Max. probe temperature | 65 °C |
| Switching capacity | NC 16 (6) A, 250 V AC / NO 6 (4) A, 250 V AC |
| Appliance class | Class I |
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…65 °C |
| Storage humidity | 10...95 % RH |
| Weight, incl. packaging | 0.34 kg |
| Material, cover | ABS |
| Material, base | PC+ABS blend (Bayblend®) |
| Setpoint value, temperature range 1 | 0...60 °C |
