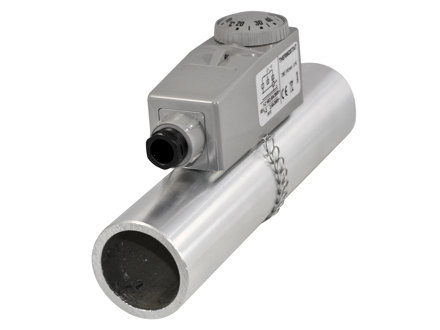

AT2090 Electromechanical clamp-on thermostat, IP20
High quality thermostats for use in cooling, heating and ventilation systems.
Specifications
| Sensor element | Bimetallic contact |
|---|---|
| Electrical contact | SPDT microswitch |
| Switching capacity | NC 16 (2.5) A, 250 V AC / NO 2.5 A, 250 V AC |
| Setpoint value, temperature range | 20...90 °C |
| Hysteresis, temperature | 8±3 K |
| Reset function | Automatic |
| Setpoint adjustment | External |
| Dimensions, external (WxHxD) | 39x55x112 mm |
| Measurand | Temperature |
| Medium | Liquid |
| Mounting | Clamp-On |
| Reset function | Automatic |
| Conformity | CE |
| Sensor element | Bimetallic contact |
|---|---|
| Max. probe temperature | 90 °C |
| Switching capacity | NC 16 (2.5) A, 250 V AC / NO 2.5 A, 250 V AC |
| Appliance class | Class I |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…60 °C |
| Storage humidity | 10...95 % RH |
| Weight, incl. packaging | 0.15 kg |
| Material, cover | ABS |
| Material, base | Zinc plated steel |
