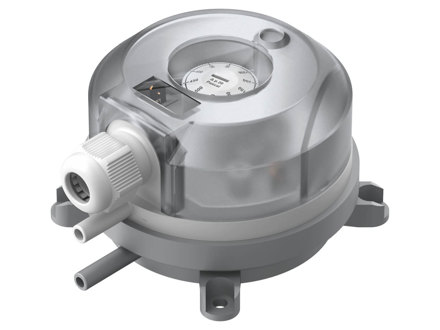

DBL-205CP5HXS Air differential pressure switches, Atex
Air differential pressure switches with adjustment range from 20 to 300 Pa for Ex zones
Specifications
| Dimensions, external (WxHxD) | 118x118x58 mm |
|---|---|
| Pressure, range sensor | 20…300 Pa |
| Max. allowed diff. Pressure sensor 1 | 10 kPa |
| Hysteresis | 10 Pa |
| Appliance class | Class II |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…85 °C |
| Storage humidity | 0...95 % RH |
| Weight, incl. packaging | 0.18 kg |
| Media | Air or non-aggressive and non-inflammable gases |
| Max. switching load | 1.5 (0.4) A |
| Material, housing | PS |
