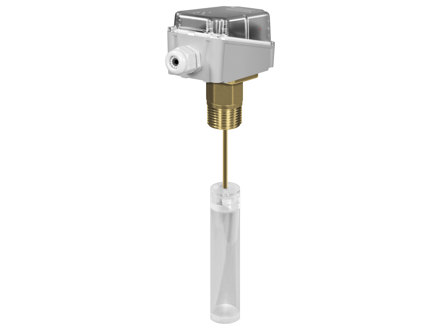

SQ01 Level switch
Level control of normal liquids contained in tanks and barrels.
Alarm signal of minimum or maximum level.
Specifications
| Differential | 10...14 mm |
|---|---|
| Max pressure | 1100 kPa |
| Connection | R 1" (DIN 2999) |
| Electrical contact | x1 SPDT |
|---|---|
| Switching capacity | 15 (8) A, 24...250 Vac |
| Appliance class | Class I |
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | -40…85 °C |
| Storage temperature | -40…85 °C |
| Storage humidity | 0...95 % RH |
| Dimensions, external (WxHxD) | 140x62x65 mm |
| Weight, incl. packaging | 0.96 kg |
| Material, cover | Transparent PC |
| Material, base | ABS |
| Material tube | Acrilic |
| Media Temperature | 0...85 °C |
