Regin

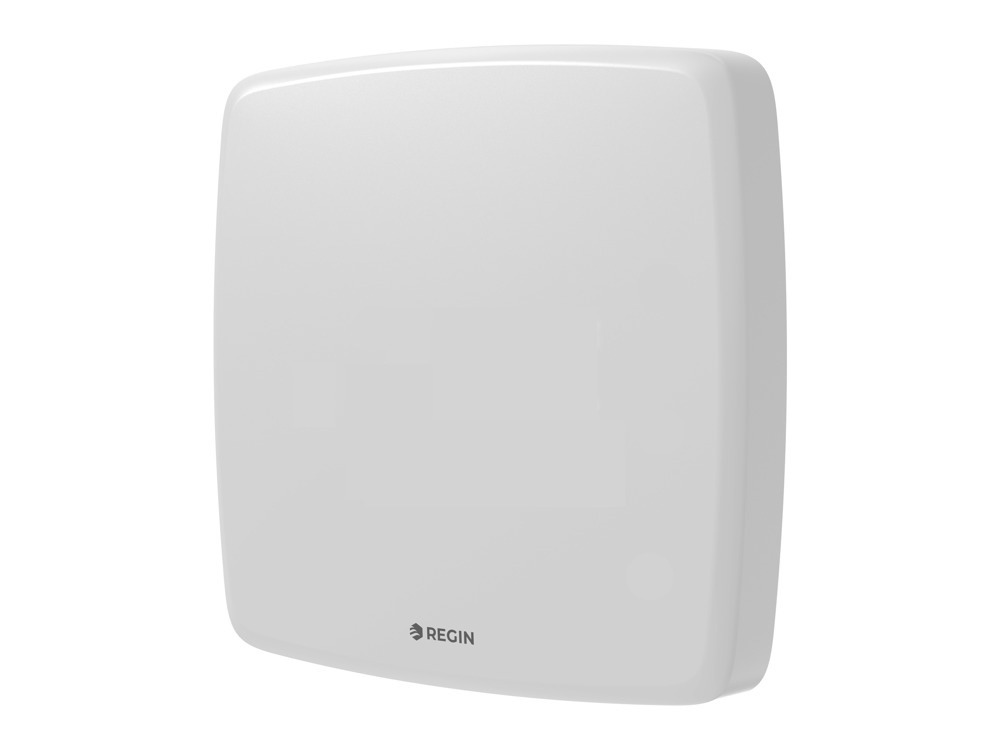

TG-R7/PT1000 TG-R7/PT1000
The TG-R7/PT1000 sensor combines accuracy with a sleek, minimalist design that blends effortlessly into design-critical environments. Its smooth casing makes it easy to keep clean, while the IP30 enclosure ensures it meets the exact demands of the room. Equipped with PT1000 sensor, it delivers accurate, reliable, and cost-efficient measurements—bringing both style and dependable functionality to any space.
Specifications
| Mounting | Room |
|---|---|
| Dimensions, external (WxHxD) | 95x95x21 mm |
| Measuring range, temp | 0…50 °C |
| Element type | PT1000 |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 1000 Ω (0°C) |
| Protection class | IP30 |
|---|---|
| Mounting | Room |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate |
| Colour, housing | Signal white RAL 9003 |
