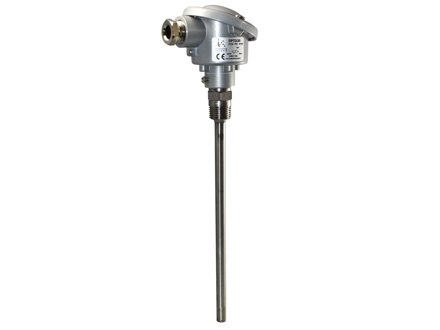

DPTD-PT100 Immersion sensor with DIN head
Immersion sensor for industrial applications.
Specifications
| Mounting | Immersion |
|---|---|
| Dimensions, external (WxHxD) | 78x292x78 mm |
| Media temp limits | -50…600 °C |
| Diameter, well | 6 mm |
| Element type | PT100 |
| Measuring range, temp | -50…600 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 100 Ω (0°C) |
| Material well | Stainless steel, EU1.4301 (SUS304) |
| Insertion length | 200 mm |
| Protection class | IP54 |
|---|---|
| Pressure rating immersion | PN30 |
| (Well/Pressure) connection | G 1/2 " |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
| Material, housing | Aluminium |
