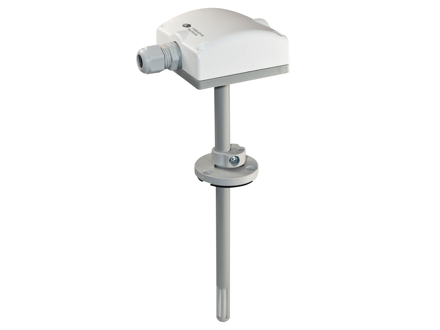

Duct humidity/temperature transmitter

TUTC0111

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: 0…50 °C
Output temperature: 0-10 V
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC0121

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -30…50 °C
Output temperature: 0-10 V
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC0131

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: 0…100 °C
Output temperature: 0-10 V
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC0212

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: 0…50 °C
Output temperature: 4-20 mA (2 wire)
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 2
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC0222

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: -30…50 °C
Output temperature: 4-20 mA (2 wire)
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 1.5
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC0232

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With power supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: 0…100 °C
Output temperature: 4-20 mA (2 wire)
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 2
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC1101

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 10K-02 B3435
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC1102

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With power supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 10K-02 B3435
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 0.6
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC1103

Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 10K-02 B3435
Measuring range, humidity: 0…100 % RH
Output humidity: 0-5 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC1301

Mounting: Duct
Dimensions, external (WxHxD): 75x10x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 1K8 B3416
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC1302

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With power supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 1K8 B3416
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 0.6
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC1401

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 10K-01 B3977
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC1402

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With power supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 10K-01 B3977
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 0.2
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC1501

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 10K-03 B3695
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC1502

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With power supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 10K-03 B3695
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 0.2
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC1601

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 20K B4262
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC1602

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: Bei Versorgungsspannung 21...30 V DC: RL < 500 Ω
Measuring range, temp: -20…50 °C
Output temperature: NTC 20K B4262
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 0.6
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

TUTC1701

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: PT1000 Class B
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC2101

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 0...10v: >1000 Ω
Measuring range, temp: -20…50 °C
Output temperature: PT100 Class B
Measuring range, humidity: 0…100 % RH
Output humidity: 0-10 V
Colour, cover: White
Colour, base: Grey
Power consumption: < 1 W

TUTC2102

Mounting: Duct
Dimensions, external (WxHxD): 75x103x266 mm
Tube length: 23 cm
Tube diameter: 12 mm
Insertion length: 60…230 mm
Analogue output load impedance 4...20mA: With power supply 11...17 V DC: RL <50 Ω
Relay: With power supply 21...30 V DC: RL < 500 Ω
Measuring range, temp: -20…50 °C
Output temperature: PT100 Class B
Measuring range, humidity: 0…100 % RH
Output humidity: 4-20 mA (2 wire)
Hysteresis, humidity: ± 3% RH
Accuracy, gas in air: 0.3
Colour, cover: White
Colour, base: White
Power supply (4...20 mA): Max 30 V DC, Min 11+(0.02xRL) V DC
Power consumption: < 1 W

Appliance class	Class III
Protection class	IP65
Ambient humidity (non-condensing)	10…95 % RH
Storage temperature	-20…70 °C
Mounting	Duct
Weight, incl. packaging	0.26 kg, 0.17 kg
Accuracy, temperature	1 K, 1.5 K, 2 K, 0.6 K, NTC 10K-02 B3435 K, NTC 1K8 B3416 K, 0.2 K, NTC 10K-01 B3977 K, NTC 10K-03 B3695 K, NTC 20K B4262 K, 0.3 K, PT100 Class B K
Cable gland	M16x1,5
Terminal type	Screw Terminal
Terminal wire size	0.75 mm²
Material, housing	Polycarbonate
Material, cover	Polycarbonate
Material sealing	Grey
