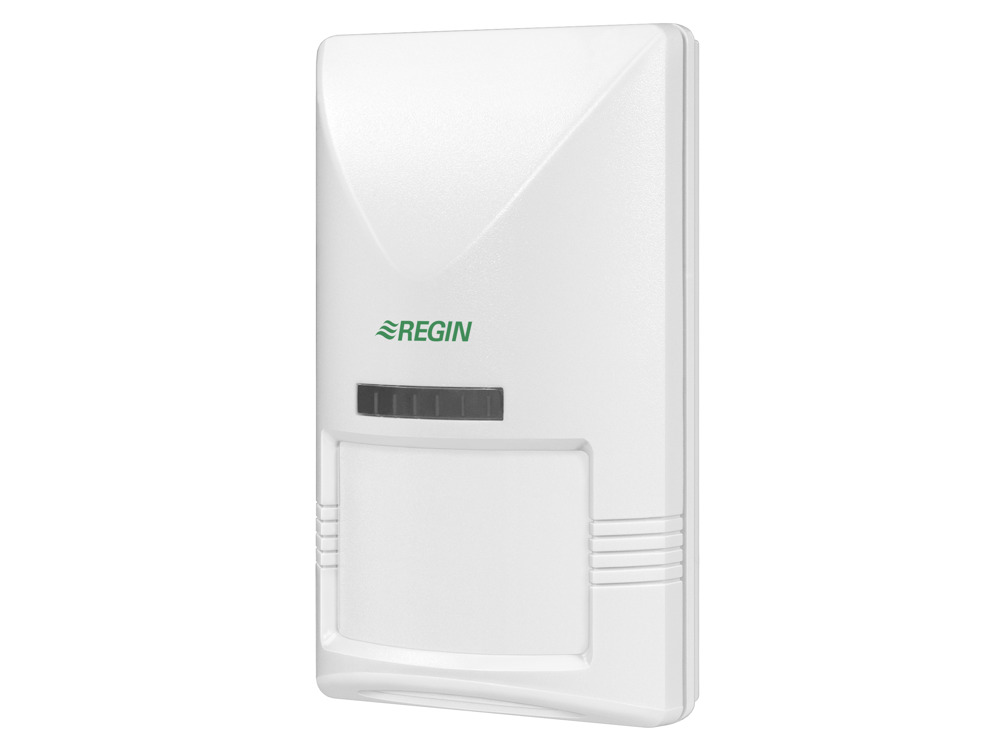

IR24-P Motion detectors
Motion detector
Specifications
| Dimensions, external (WxHxD) | 66x112x45 mm |
|---|---|
| Relay | NC / NO potential-free change-over relay |
| ON-Delay | 0, 10, 30, 60, 300 or 600 s (selectable) |
| OFF-Delay | 10, 60, 300, 600, 1200 or 1800 s (selectable) |
| Detection area - Angle | 110 ° |
| Detection range Hight | 6m @ 1.8m, 3.6m @ 20m |
| Detection speed | 0.1...3.0 ms |
| Power Supply | 24VAC/DC (22...26 V AC 50Hz / 22...26 V DC), 1.0 VA |
|---|---|
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Mounting | Room |
| Max. switching load | 200 mA |
