Room thermostats with automatic speed and economy function

2-, 4-pipe and 3-speed fan-coils control for room temperature.

Specifications
Software & documentation

Articles

(1 st)

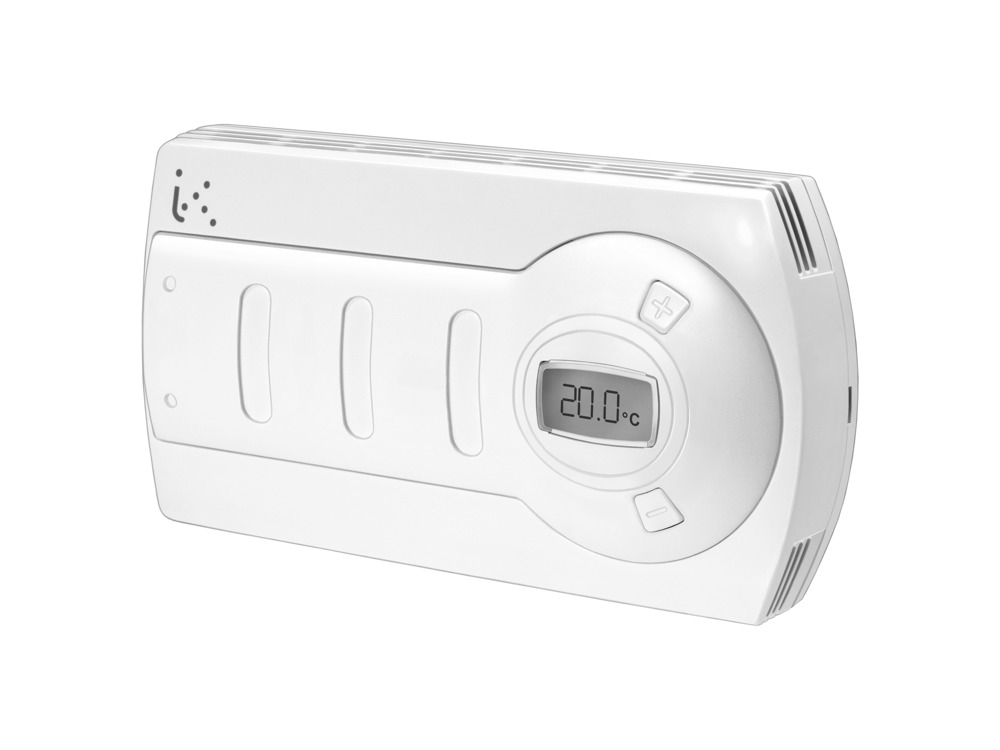

  • DB-TA-3D3-00A - Regin
    DB-TA-3D3-00A
    On/off button
    No
    3 speeds
    Automatic
    Change-over function, season
    2-pipe system: S/W par (setting by keys and display) 4-pipe system: S/W auto (s/w change-over with water sensor)
    Sensor
    NTA020-027P

Specifications

Specifications for Room thermostats with automatic speed and economy function
Supply voltage 230 V AC ± 10%, 50/60 Hz
Outputs Valves: 2 outputs 0,5 A 230 V AC / speeds: 3 outputs 3 A 230 V AC
Power consumption 1 W
Sensor NTC 10K
Ambient temperature 0…40°C
Ambient humidity 10…90 % RH (non-condensing)
Setpoint 7…30°C
Storage temperature -20…+70°C
Storage humidity < 95% RH
Economy 2 pipes: adjustable range between 5…30 °C (replaced the working setpoint) / 4 pipes: adjustable range between 0…5 °C
Temperature resolution 0.1°C
Casing ABS fireproof according to UL94 V-0 color (RAL 9010)
Weight 0.22
Dimensions 144 x 82 x 34mm
Protection class IP30
Isolation class II
