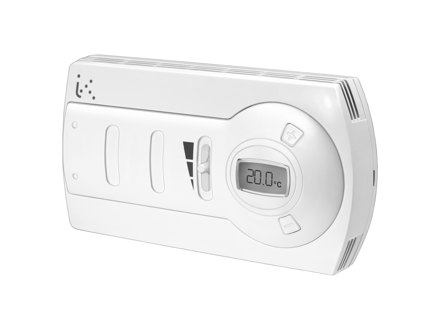

DB-TA-3A3-93A Room thermostats for 4 pipe system with economy function
4-pipe fan-coil control for room temperature.
Specifications
| On/off button | No |
|---|---|
| 3 speeds | Yes |
| Change-over function, season | W/S (neutral zone) |
| Sensor | NTA020-027P |
| Supply voltage | 230 V AC ± 10%, 50/60 Hz |
|---|---|
| Input | External contact for economy function |
| Outputs | Valves: 2 relays SPDT 6 A 230 V AC / speeds: 6 A 230 V AC, 50/60 Hz |
| Power consumption | 1 W |
| Sensor | NTC 10K |
| Ambient temperature | 0…40°C |
| Ambient humidity | 10…90 % RH (non-condensing) |
| Setpoint | 5…30°C |
| Hysteresis | 0.5…4 K |
| Neutral zone | 1…4K |
| Storage temperature | -20…+70°C |
| Storage humidity | < 95% RH |
| Economy | Adjustable range between 0…5 °C |
| Temperature resolution | 0.1°C |
| Casing | ABS fireproof according to UL94 V-0 color (RAL 9010) |
| Weight | 0.22 |
| Dimensions | 144 x 82 x 34mm |
| Protection class | IP30 |
| Isolation class | II |
