Industrietechnik

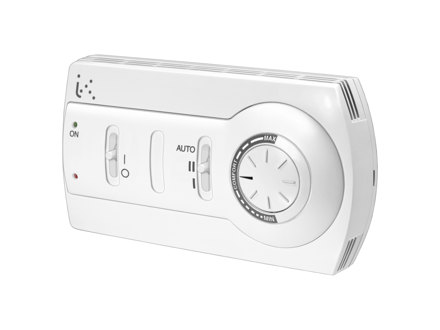

DB-TA-387-10A Room controllers for 2 or 4 pipe system with automatic speed and changeover
2- and 4-pipe and 3-speed fan control with for room temperature regulation.
Specifications
| On/off button | Yes |
|---|---|
| Speed selection button | No |
| Change-over function, season | Auto |
| 3 speeds | Auto |
| Sensor | NT0220-NTC10-02 |
| Supply voltage | 230 V AC ±10%, 50/60 Hz |
|---|---|
| Load | Max. 6 A |
| Output | 5 relays 8 A 230 V AC |
| Power consumption | 1 W |
| Sensor | NTC 10K |
| Ambient temperature | 0…40°C |
| Ambient humidity | 10…90 % RH (non-condensing) |
| Setpoint | 12…28°C |
| Hysteresis | 0.4 K |
| Storage temperature | -20…+70°C |
| Storage humidity | < 95% RH |
| Casing | ABS fireproof according to UL94 V-0 color (RAL 9010) |
| Weight | 210 g |
| Dimensions | 144 x 82 x 34mm |
| Protection class | IP30 |
| Isolation class | II |
Software & documentation
Product sheet
Instructions
