CMF -Controllers for simple applications
A series of compact, economic and versatile stand-alone controllers without communication. They are pre-configured and intended for smaller applications. The controllers are easy to install, commission and control.

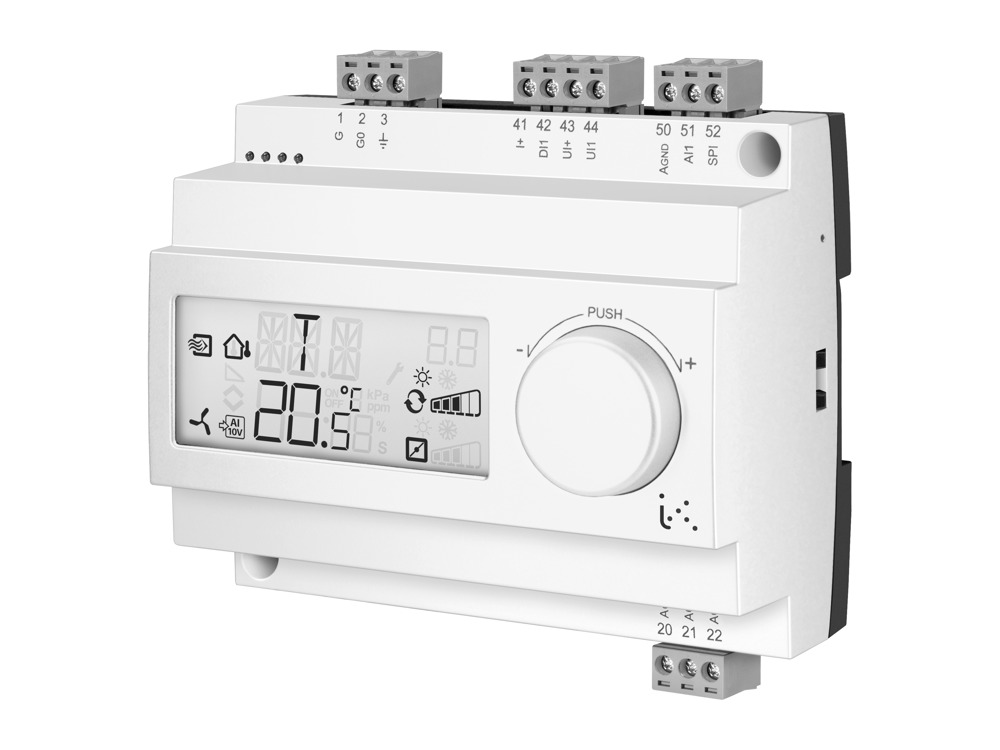

CMF5U and CMF10There are two models, CMF5U and CMF10. CMF5U has 5 inputs/outputs and 24 V AC supply voltage. It has a choice of five different control modes:
CMF10 has 10 inputs/outputs. It is available in versions with 24 V AC or 230 V AC supply voltage and has a choice of five different control modes:
TimerThe timer handles e.g. night setback, start or stop of fans during weekdays or during a day.Quick and simple installationThe device is suitable for DIN-rail or cabinet mounting. Since the terminals are detachable, all connections can be made before the controller is installed.
CMF5U and CMF10There are two models, CMF5U and CMF10. CMF5U has 5 inputs/outputs and 24 V AC supply voltage. It has a choice of five different control modes:
- Temperature control
- CO2 control
- General control 0...100 %
- Pressure control
- Pressure control with outdoor compensation
CMF10 has 10 inputs/outputs. It is available in versions with 24 V AC or 230 V AC supply voltage and has a choice of five different control modes:
- Supply air temperature control
- Supply air temperature control with outdoor compensation
- Cascade connected, room temperature influenced, supply air control
- Radiator circuit control with outdoor curve
- Domestic hot water control
TimerThe timer handles e.g. night setback, start or stop of fans during weekdays or during a day.Quick and simple installationThe device is suitable for DIN-rail or cabinet mounting. Since the terminals are detachable, all connections can be made before the controller is installed.
Navigate on this page
Specifications
| Supply voltage | 24 V AC ±15 % / ...10-230 model: 230 V AC |
|---|---|
| Power consumption | 4 VA |
| Ambient temperature | 0…50°C |
| Storage temperature | -40…+50°C |
| Ambient humidity | Max. 90 % RH |
| Mounting | DIN-rail |
| Number of modules | 7 |
| Protection class | IP20 |
| Display | Backlit LCD, numeric/graphic, language-independent symbols |
| Dimensions (WxHxD) | 123 x 123 x 60mm |
| Clock | Week-based 24-hour clock |
| Analogue inputs (AI) | PT1000 |
| Digital inputs (DI) | Closing potential-free contact |
| Universal inputs (UI) | 0...10 V DC or digital |
| Setpoint input (SPI) | For an external PT1000 setpoint device, e.g. SAP-PT1000 or SET-PT1000 |
| Digital outputs (DO) | CMF10 and CMF10-230 only. Triac 24 V AC, 0.5 A (3-point control or alarm output) and one change-over relay 230 V AC, 5 A (fan start). |
| Analogue outputs (AO) | 0...10 V DC, short-circuit protected |
