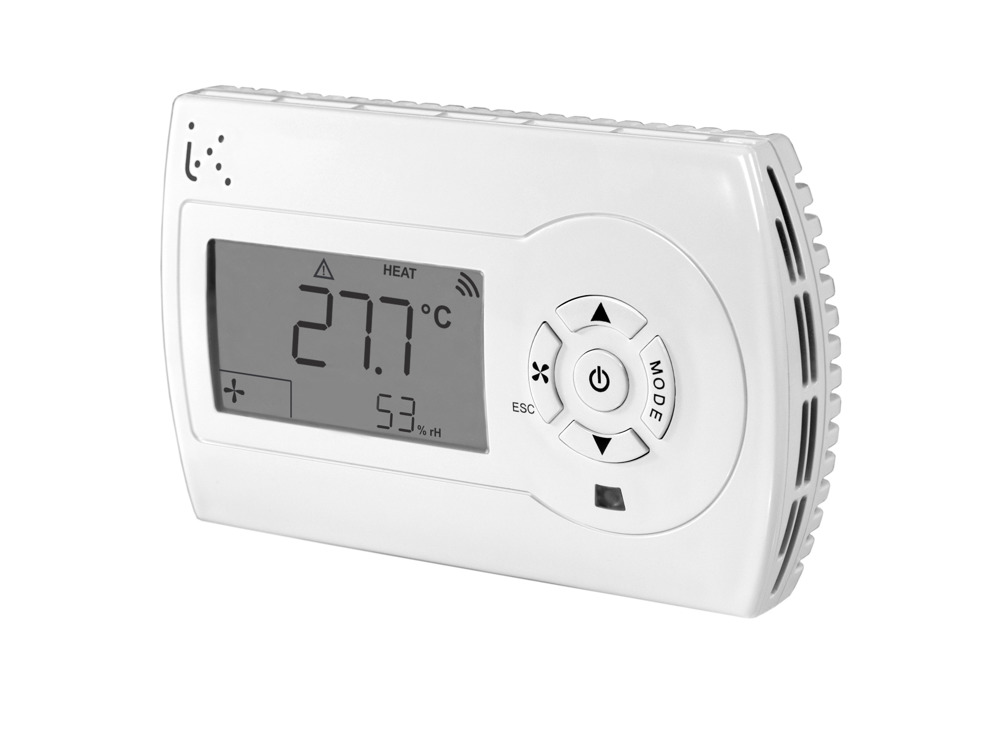

Evolution Split THS2
THS2 is an optional display unit for Evolution Split. Connected to a THS2-0MM unit configured as master, it allows you to manage all the parameters and view the status of the internal network. With the THS2-0MM unit configured as a slave, it allows the control of only some operating parameters: on / off, setpoint and fan coil speed.
Navigate on this page
Articles
(1 st)-
THS2- Communication
- External network, Modbus RTU (master) Modbus
- Internal sensor
- Temperature + humidity
- Clock
- X
- DI
- 2
- DO
- -
- AI
- -
- AO
- -
Specifications
| Supply voltage | 5 V DC |
|---|---|
| Ambient temperature | 0…50°C |
| Display | |
| Inputs | 2 |
| Communication | internal network |
| Dimensions (WxHxD mm) | 128 x 80 x 55.5 |
| Mounting | wall mounting |
| Protection class | IP30 |
| Isolation class | II |
| Certification | EN 60730-1 |
