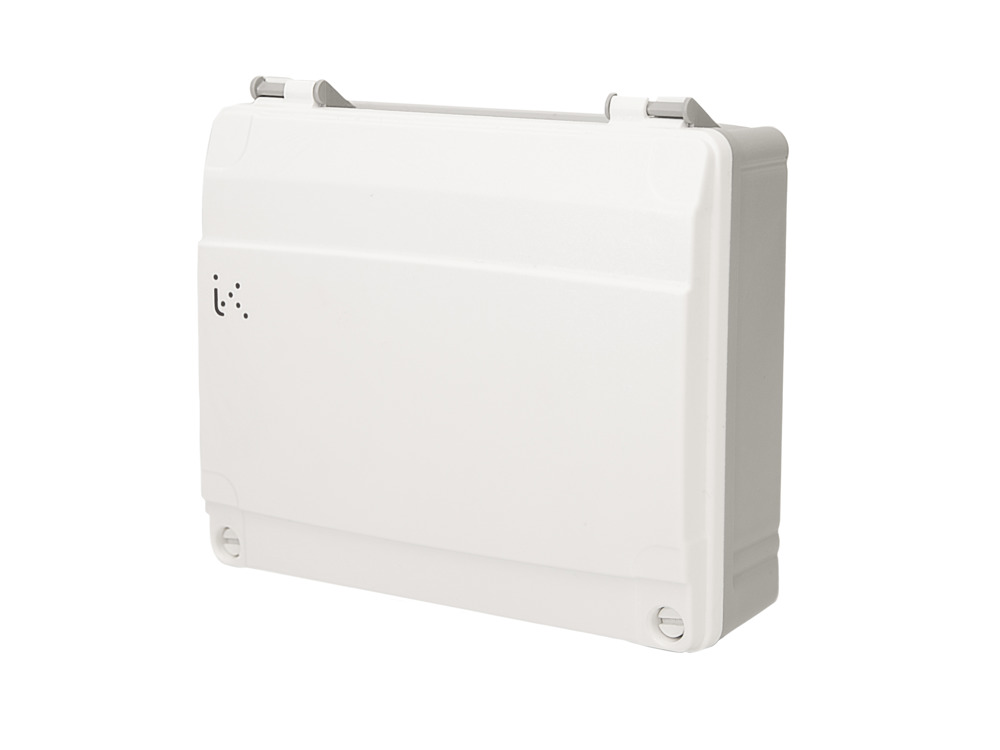

Evolution Split THS2-0MM
THS2-0MM is a configurable master / slave unit from the Evolution Split Series. If configured as master, it can be connected to other THS2-0MM units configured as slaves ( in total 14 slave units).
The unit can manage 3-speed fan coils or fans with EC motor, on / off valves, modulating valves or 3-point valves.
THS2-0MM is equipped with a second Modbus communication port where it can be connected to a Scada system or an optional THS2 display unit, allowing the settings of the operating parameters for the entire internal network and the display of the operating status of all units.
The unit can manage 3-speed fan coils or fans with EC motor, on / off valves, modulating valves or 3-point valves.
THS2-0MM is equipped with a second Modbus communication port where it can be connected to a Scada system or an optional THS2 display unit, allowing the settings of the operating parameters for the entire internal network and the display of the operating status of all units.
Navigate on this page
Articles
(1 st)-
THS2-0MM- Communication
- Internal network and RTU Modbus (slave) to BMS
- Internal sensor
- -
- Clock
- -
- DI
- 2
- DO
- 6
- AI
- 2
- AO
- 3
Specifications
| Supply voltage | 110…240 V AC, 50/60 Hz |
|---|---|
| Power consumption | Max, 1,1 W (3,5 VA) THS2-0MM (with THS2 connected) |
| Ambient temperature | 0…40°C |
| Inputs | 2 potential free contacts / 2 NTC10K sensors / USB port for parameters setting and software update |
| Outputs | 3 analogue outputs 0…10 V (R L > 10 K) / 5 relays SPST 250 V AC, 3A (AC1) / 1 relay SPST 250 V AC, 10 A (AC1) |
| Communication | Modbus RTU (Slave) to BMS and internal network |
| Dimensions (WxHxD mm) | 140 x 121.5 x 47 |
| Protection class | IP30 |
| Isolation class | II |
| Certification | EN 60730-1 |
