Articles
(1 st)-

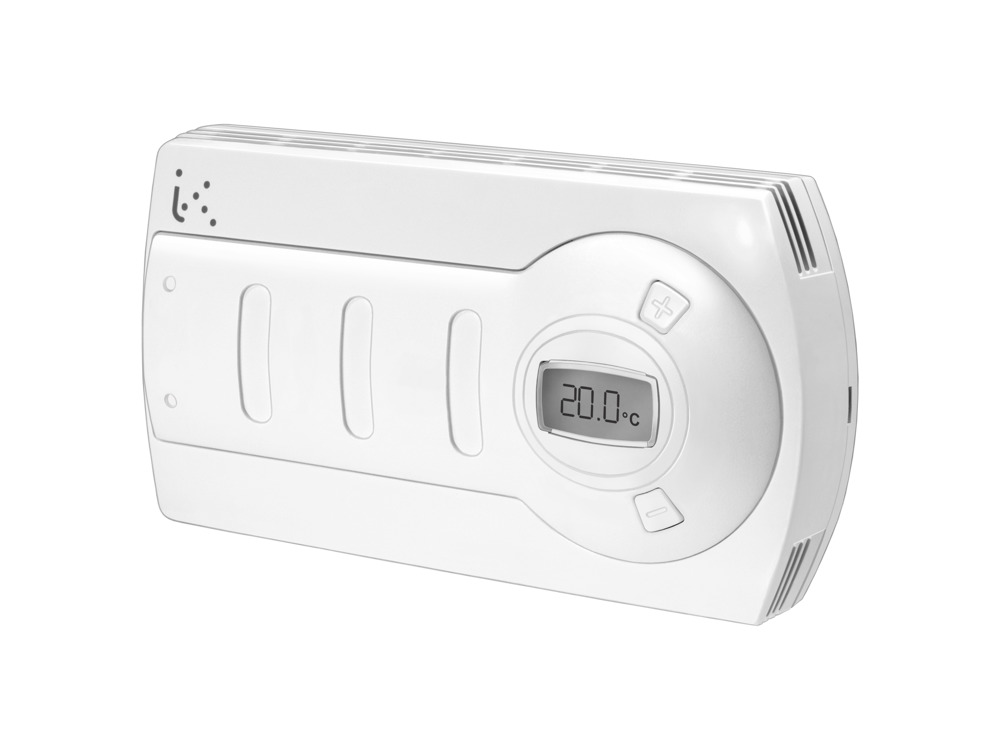

DB-TA-3A3-000- 3 speeds
- No
- Step differential
- 0.5…4 K
- Hysteresis
- 0.5…4 K
- Sensor
- NTA020-027P
Specifications
| Supply voltage | 230 V AC ± 10%, 50/60 Hz |
|---|---|
| Outputs | Valves: 4 relays SPST 5 A 230 V AC / speeds: 5 A 230 V AC, 50/60 Hz |
| Power consumption | 1 W |
| Sensor | NTC 10K |
| Ambient temperature | 0…40°C |
| Ambient humidity | 10…90 % RH (non-condensing) |
| Setpoint | 5…30°C |
| Step differential | 0.5…4 K |
| Hysteresis | 0.5…4 K |
| Storage temperature | -20…+70°C |
| Storage humidity | < 95% RH |
| Temperature resolution | 0.1°C |
| Casing | ABS fireproof according to UL94 V-0 color (RAL 9010) |
| Weight | 220 g |
| Dimensions | 144 x 82 x 34mm |
| Protection class | IP30 |
| Isolation class | II |
