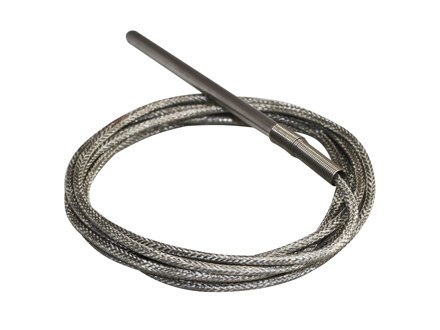

PT1020C-PT100 Cable temperature sensor -50…350 °C, metal bulb
Special cable sensor for high temperature.
Specifications
| Sensor Interface | Passive |
|---|---|
| Cable length | 2 m |
| Measuring range, temp | 0…350 °C |
| Element type | PT100 |
| Nominal resistance | 100 Ω @0°C, Class B |
| Protection class | IP44 |
|---|---|
| Bulb length | 100 mm |
| Bulb diameter | 6 mm |
| Material cable | Fiberglass |
| Material sensor | Stainless steel AISI 304 with ceramic insert |
