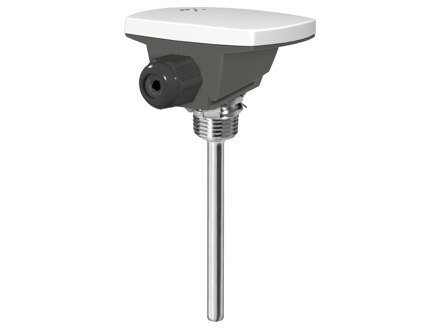

STI-NI1000-02 Immersion sensor with housing and well
This article is discontinued
The sensor part has a clip fastening which makes it easy to mount.
Specifications
| Sensor element | Ni1000 |
|---|---|
| Nominal resistance | 1000 Ω (0°C) |
| Temperature range | -20...+120 °C |
| Equivalent | Sauter |
| _Article Industrietechnik | STI-NI1000-02 |
| Temperature range | -20…+120°C |
|---|---|
| Cable gland | M16 |
| Time constant | 18s |
| Insertion length | 90mm |
| Connection, well | R1/2" |
| Material, probe and well | Stainless steel |
| Diameter, well | 8mm |
| Pressure rating | PN25 |
| Dimensions | 93 x 70 x 150mm |
| Protection class | IP65 |
