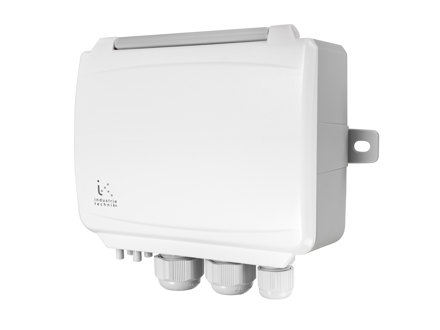

TPDA-12CXS25C Discontinued -Differential pressure transmitters with communication
This article is discontinued
Specifications
| Number of sensors | 2 |
|---|---|
| Max. overload pressure | 25 / 50 kPa |
| Measuring range, pressure | 0…1250 Pa (sensor 1) / 0…2500 Pa (sensor 2) |
| Supply voltage | 24 V AC/DC (21…27 V AC/DC) |
|---|---|
| Protection class | IP54 |
| Power consumption | < 1 VA |
| Ambient temperature | -25…+50°C |
| Mounting | Wall |
| Accuracy, pressure | ≤ 1 % full scale |
| Accessories, included | Two pressure outlets (straight) and 2 m plastic tube. Art. no.: ANS-20 |
| Media | Air, non-combustible and non-aggressive gases |
| Response time | 40 ms, depending on filtertime |
| Sensor element, pressure | Piezoresistive |
| Temperature dependency, pressure | Thermal effects: 1 (-25…+85 °C), Offset: ±0.5 % FSS, Span: ±1.0 % FSS |
| Resolution | 0,005 % of full scale |
| Warmup time | < 5 min |
| Annual deviation | ±2 Pa (1250 Pa) ±4 Pa (2500 Pa) ±20 Pa (7500 Pa) |
| K-factor | 5 (5…700) |
| Zero-point adjustment | By pressing a button, the output signal and the display adjusts to zero. |
| Accuracy | ± 1 % (0…10 V) ± 0.5 K (PT1000/Ni1000-01), ± 1 % |
| Digital inputs (DI) | Potential-free contacts on/off (closed=on) |
| Analogue outputs (AO) | 0…10 V |
| Digital outputs (DO) | Potential-free contacts on / off (on = closed) |
| Power output | Max. 2A (total UO1 + UO2) |
| Supported protocols | Modbus |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
