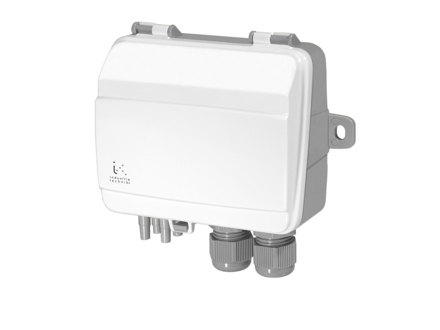

TPDA75A Differential pressure transmitters with analogue outputs
This article is discontinued
Differential pressure transmitter for HVAC applications with one or two analogue outputs. The transmitter can be configured for output signals 0-10 V or 4…20 mA.
Specifications
| Working range | 0…7500 Pa |
|---|---|
| Number of sensors | 1 |
| Supply voltage | 24 V AC/DC ±15 % |
|---|---|
| Overall accuracy pressure | ≤ 1 % full scale |
| Power consumption | 0…10 V mode : 2 VA (rms), min. trafo size 7,5 VA 4…20 mA mode : 2.7 VA (rms), min. trafo size 9 VA |
| Operating temperature | -25…+50°C |
| Protection class | IP54 |
