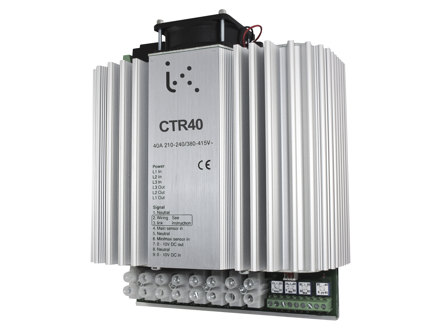

CTR40 Electric heating controller for DIN-rail mounting, 3-phase, 210...415 V, 40 A
Electric heating controller with temperature control
Specifications
| External 0...10 V DC control signal option | Yes |
|---|
| Supply voltage | 3-phase, 210...255 / 380...415 V AC, automatic adaptation |
|---|---|
| Ambient temperature | 0…40°C |
| Mounting | DIN-rail |
| Dimensions (WxHxD) | 195 x 220 x 95mm |
| Protection class | IP20 |
| P-band | Supply air temperature control: 20 K, fixed Room temperature control: 1.5 K, fixed |
| I-time | 6 min, fixed |
| Pulse period | 6...60 |
| Load | 40 A |
| Output | 40 A, 3 x 400 V AC, 27 kW (3 x 230 V, 16 kW) |
| Setpoint | 0...30°C |
| Sensor inputs | Two, main and max./min. limiting sensors (NTC sensor). |
| Control signal | 0...10 V DC |
