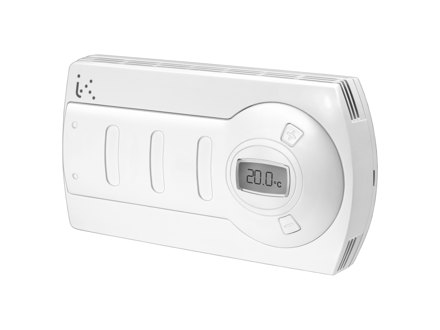

DB-TA-3C3-99A Room thermostats 2 stages with economy function
Temperature control in heating, refrigeration and air conditioning for typical fan-coil systems with 2 stages.
Specifications
| Dimensions, external (WxHxD) | 144x82x34 mm |
|---|---|
| Display | Yes |
| Power supply | 24 V AC ±10%, 50/60 Hz |
| Power consumption | 1 W |
| Sensor | NTC10K |
| Setpoint | +5...+30 °C |
| Economy | adjustable range between 0...+5 °C |
| Differential in stages | 0.5...4 |
| Differential between the stages | 0.5...4 |
| Appliance class | Class II |
|---|---|
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C |
| Storage humidity | 0...95 % RH |
| Mounting | Room, Wall |
| Weight, incl. packaging | 0.22 kg |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | ABS |
| Colour, housing | RAL9010 |
