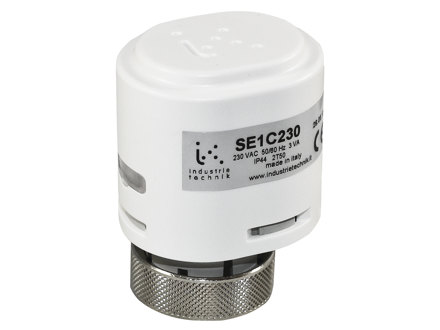

SE1C230S Thermal actuators for manifolds and valves
Thermal actuator to be used on manifolds
Specifications
| Dimensions, external (WxHxD) | 49x65x40 mm |
|---|---|
| Force | 90 N |
| Supply voltage | 230 V AC ±10% |
| Power consumption | 3 VA |
| Cable length | 1 m |
| Control signal | ON / OFF |
| Feedback signal | 3 A, 230 Vac |
| Running time, actuator | 210 s |
| Stroke length | 3.5 mm |
| Appliance class | Class II |
|---|---|
| Protection class | IP40 |
| Protection class, additional information | IP44 if mounted vertically |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -10…60 °C |
| Storage humidity | 0...95 % RH |
| Weight, incl. packaging | 0.15 kg |
| Cable nominal cross section | 0.5 mm² |
| Connection towards valve | M30 x 1.5 |
