Articles
(4 st)-
SE1C24- Force
- 90 N
- Supply voltage
- 24 V AC ±10%
- Power consumption
- 3 VA
- Control signal
- ON / OFF
- Running time, actuator
- 270 s
- Auxiliary switch
- --
- Switching capacity (Auxiliary)
- --
-

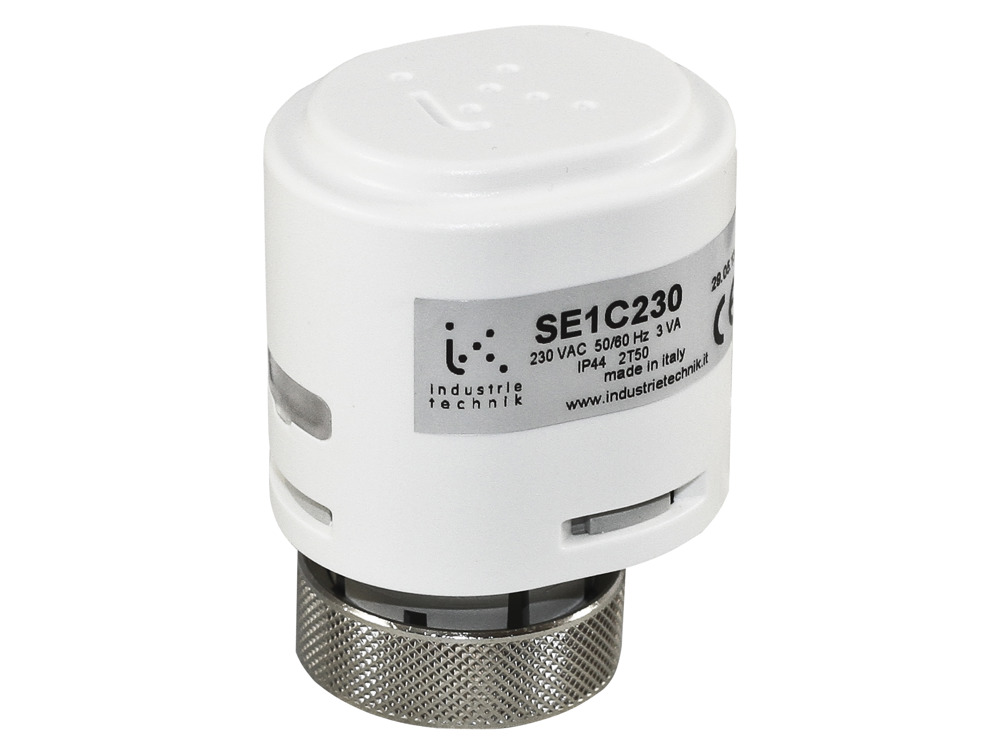

SE1C230
- Force
- 90 N
- Supply voltage
- 230 V AC ±10%
- Power consumption
- 3 VA
- Control signal
- ON / OFF
- Running time, actuator
- 210 s
- Auxiliary switch
- --
- Switching capacity (Auxiliary)
- --
-
SE1C24S
- Force
- 90 N
- Supply voltage
- 24 V AC ±10%
- Power consumption
- 3 VA
- Control signal
- ON / OFF
- Running time, actuator
- 270 s
- Auxiliary switch
- 1x SPDT
- Switching capacity (Auxiliary)
- 3 A, 230 Vac
-
SE1C230S
- Force
- 90 N
- Supply voltage
- 230 V AC ±10%
- Power consumption
- 3 VA
- Control signal
- ON / OFF
- Running time, actuator
- 210 s
- Auxiliary switch
- 1x SPDT
- Switching capacity (Auxiliary)
- 3 A, 230 Vac
Specifications
| Appliance class | Class III, Class II |
|---|---|
| Protection class | IP40 |
| Protection class, additional information | IP44 if mounted vertically |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Ambient temperature | 0…50 °C |
| Storage temperature | -10…60 °C |
| Storage humidity | 0...95 % RH |
| Dimensions, external (WxHxD) | 49x65x40 mm |
| Weight, incl. packaging | 0.15 kg |
| Cable length | 1 m |
| Cable nominal cross section | 0.5 mm² |
| Stroke length | 3.5 mm |
| Connection towards valve | M30 x 1.5 |
| Material, housing | Polycarbonate (PC) |
