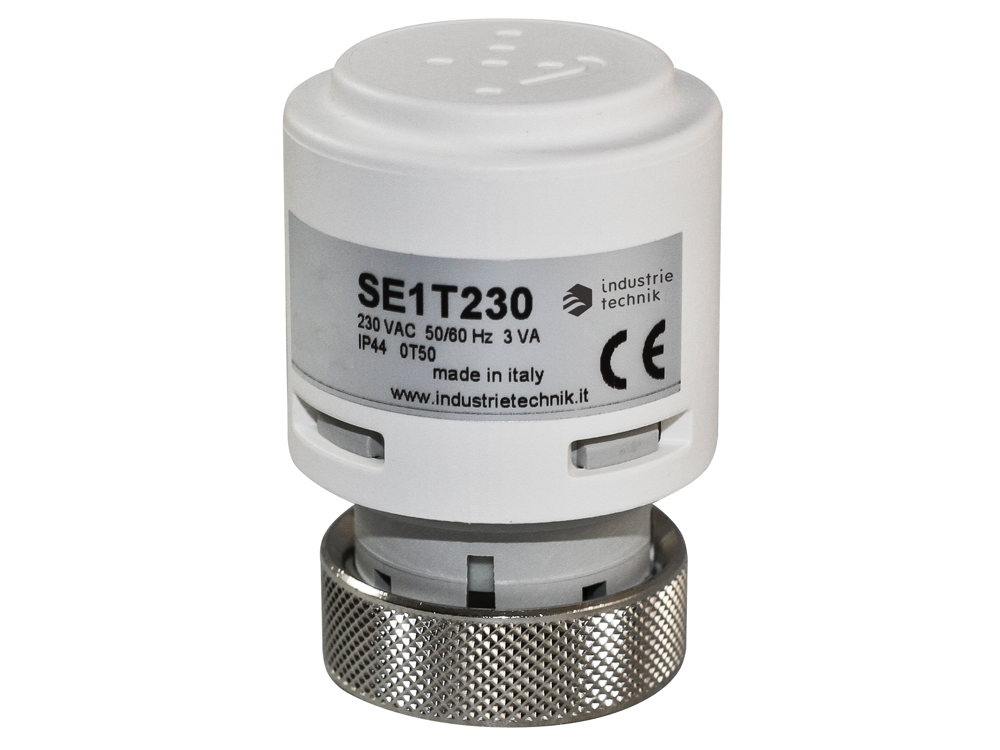

SE1T230S Thermal actuators 100/140 N, 2.5 mm stroke
Thermal actuator with position indicator for control of valves in heating or cooling systems. The actuator can be used to control radiator circuits, solar heating systems, heating or cooling coils, floor heating etc. To be combined with the VFX range of valves.
Specifications
| Dimensions, external (WxHxD) | 40x78x40 mm |
|---|---|
| Force | 100 N |
| Supply voltage | 230 V AC ±10% |
| Power consumption | 3 VA |
| Cable length | 2 m |
| Control signal | ON / OFF |
| Feedback signal | 3 A, 230 Vac |
| Running time, actuator | 210 s |
| Stroke length | 2.5 mm |
| Appliance class | Class II |
|---|---|
| Protection class | IP40 |
| Protection class, additional information | IP44 if mounted vertically |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C |
| Storage humidity | 0...95 % RH |
| Weight, incl. packaging | 0.2 kg |
| Cable nominal cross section | 0.5 mm² |
| Connection towards valve | M30 x 1.5 |
