Regin

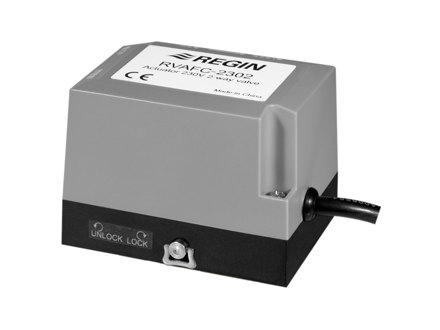

On/Off valve actuator for ZFCM valves
Actuator intended for on/off control of hot or cold water in heating or cooling systems. The actuator has a synchronous motor and spring return mechanism. It is intended for use together with Regin’s ZFCM valves.
Articles
(2 st)-
RVAFC-2302Actuator for ZFCM-2 valves- Supply voltage
- 230 V AC
- Power consumption
- 6 VA
- Cable length
- 0.9 m
- Control signal
- On/off, NC
- Running time, actuator
- 15 s
- Running time, spring
- 5 s
-
RVAFC-2303Actuator for ZFCM-3 valves
- Supply voltage
- 230 V AC
- Power consumption
- 6 VA
- Cable length
- 0.9 m
- Control signal
- On/off, NC
- Running time, actuator
- 15 s
- Running time, spring
- 5 s
Specifications
| Protection class | IP44 |
|---|---|
| Working angle, rotation | 20 ° |
| Connection towards valve | Standard for ZFCM valves |
