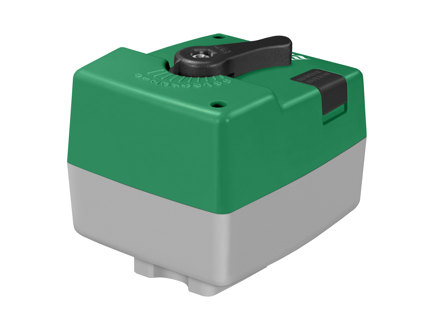

RVAB4-24A Ball valve actuator for BV2/BV3 valves
Ball valve actuator with bi-directional motor mainly used in central air-conditioning systems, heating systems, water treatment, and production industry to control the flow of cold/hot media.
Specifications
| Supply voltage | 24 V AC |
|---|---|
| Power consumption | 3 VA |
| Torque | 4 Nm |
| Control signal | 0(2)…10 V DC or 0(4)…20 mA |
| Feedback signal | 0…10 V DC |
| Running time, actuator | 45 s |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -30…70 °C |
| Working angle, rotation | 90 ° |
| Connection towards valve | Square 9 mm hole with M5 screw on valve |
