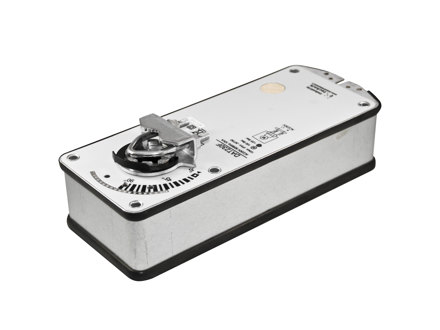

DAT230F Damper actuators with spring return, 10 Nm
Well-suited for applications with security dampers used as antifreeze, antismoke or for sealing in the hygienic-sanitary field.
Specifications
| Supply voltage | 230 V AC |
|---|---|
| Power consumption | 10 VA (5 W - Running / 2.5 W - Holding) |
| Cable length | 1 m |
| Torque | 10 Nm |
| Control signal | On / Off |
| Running time, actuator | 100 s |
| Running time, spring | 25 s |
| Auxiliary switch | No |
| Damper shaft, round | 10…19 mm |
| Damper shaft, square | 10…16 mm |
| Damper shaft, min shaft length | 50 mm |
| Appliance class | Class II |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 5…95 % RH |
| Weight, incl. packaging | 2.3 kg |
| Working angle, rotation | 95 ° |
| Max damper size (area) | 2 m² |
| Frequency | 50...60 Hz |
