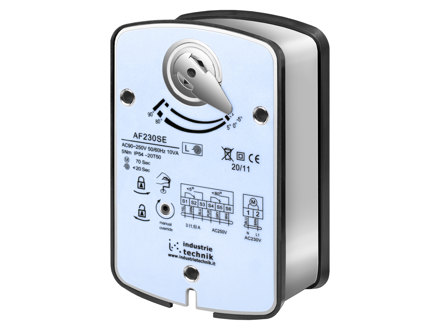

Damper actuators with spring return for fire dampers, 5 Nm
Industrietechnik

Damper actuators with spring return for fire dampers, 5 Nm

Well-suited for applications with security / fire dampers used as antifreeze, antismoke or for sealing in the hygienic-sanitary field.

Specifications
Software & documentation

Articles

(2 st)
  • AF24SE - Regin
    AF24SE
    Supply voltage
    24 V AC/DC
    Cable length
    1 m
    Torque
    5 Nm
    Running time, spring
    20 s
    Auxiliary switch
    Yes
    Max damper size (area)
    1 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    7.2 W
    Power consumption in rest position
    2.5 W
    Power consumption for wire sizing
    10 VA
    Running time, actuator (range)
    50...70 s
    Angle limitation
    5...85° in 5° steps
    Sensor action
    72 °C
  • AF230SE - Regin
    AF230SE
    Supply voltage
    230 V AC ±10%
    Cable length
    1 m
    Torque
    5 Nm
    Running time, spring
    20 s
    Auxiliary switch
    Yes
    Max damper size (area)
    1 m²
    Frequency
    50...60 Hz
    Power consumption in operation
    4.2 W
    Power consumption in rest position
    2.5 W
    Power consumption for wire sizing
    10 VA
    Running time, actuator (range)
    50...70 s
    Angle limitation
    5...85° in 5° steps
    Sensor action
    72 °C

Specifications

Specifications for Damper actuators with spring return for fire dampers, 5 Nm
Appliance class Class III, Class II
Protection class IP54
Ambient humidity (non-condensing) 5…95 % RH
Weight, incl. packaging 1.8 kg
Working angle, rotation 90 °
