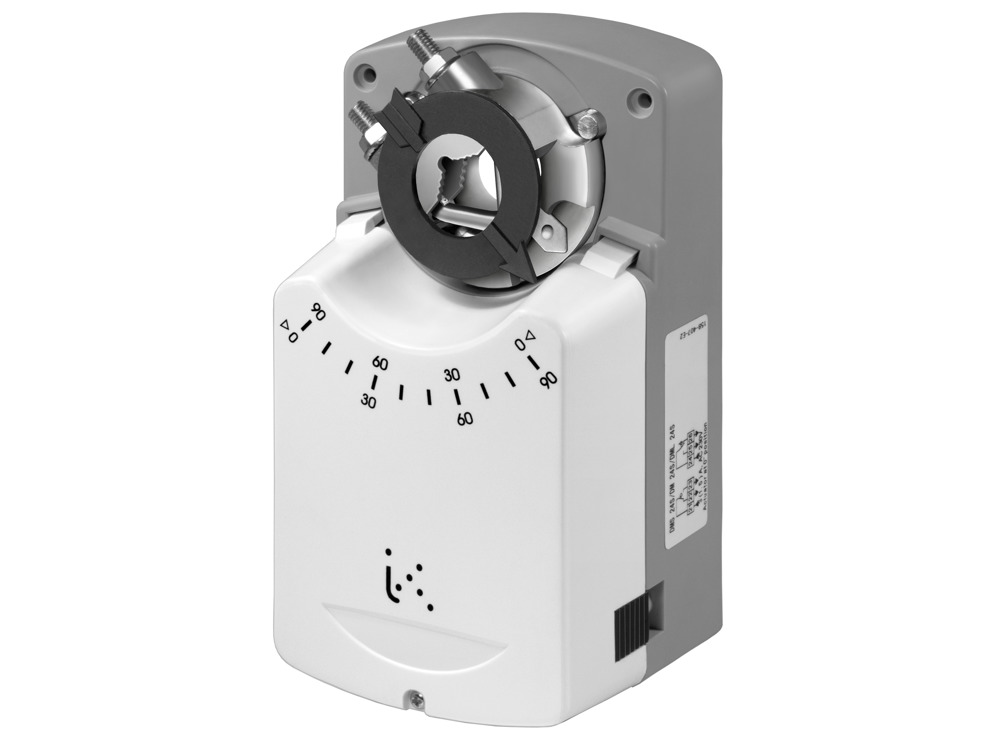

Electric actuators for VF valves series
Bi-directional actuators with manual override, 2 SPDT auxiliary switches, selectable rotation direction, IP44 or IP54 with cable glands.
Articles
(6 st)-
DAL24S- Supply voltage
- 24 V AC/DC
- Power consumption
- 6.5 VA (3.9 W - Running / 0.4 W - Holding)
- Control signal
- 2-, 3-point
- Feedback signal
- --
- Running time, actuator
- 125 s
- Switching capacity (Auxiliary)
- 3 (1.5) A, 230 Vac (x2 SPDT)
- Auxiliary switch
- Yes
- Damper shaft, min shaft length
- 50 mm
- Angle limitation
- 5...85° in 5° steps
-
DAL230S
- Supply voltage
- 230 V AC
- Power consumption
- 6.5 VA (4.8 W - Running / 1.2 W - Holding)
- Control signal
- 2-, 3-point
- Feedback signal
- --
- Running time, actuator
- 125 s
- Switching capacity (Auxiliary)
- 3 (1.5) A, 230 Vac (x2 SPDT)
- Auxiliary switch
- Yes
- Damper shaft, min shaft length
- 50 mm
- Angle limitation
- 5...85° in 5° steps
-
DML24S
- Supply voltage
- 24 V AC/DC
- Power consumption
- 6.5 VA (4 W - Running / 0.7 W - Holding)
- Control signal
- 0(2)...10 Vdc or 0(4)...20 mA
- Feedback signal
- 0(2)...10 Vdc
- Running time, actuator
- 125 s
- Switching capacity (Auxiliary)
- 3 (1.5) A, 230 Vac (x2 SPDT)
- Auxiliary switch
- Yes
- Damper shaft, min shaft length
- 50 mm
- Angle limitation
- 5...85° in 5° steps
-
DAG24S
- Dimensions, external (WxHxD)
- 100x180x67 mm
- Supply voltage
- 24 V AC/DC
- Torque
- 32 Nm
- Control signal
- 2 - 3 point
- Running time, actuator
- 160 s
- Auxiliary switch
- Yes
- Damper shaft, round
- 10…20 mm
- Damper shaft, square
- 10…16 mm
- Damper shaft, min shaft length
- 50 mm
- Max damper size (area)
- 8 m²
- Frequency
- 50...60 Hz
- Power consumption in operation
- 4.0 W
- Power consumption in rest position
- 0.5 W
- Power consumption for wire sizing
- 4.1 VA
- Angle limitation
- 5...85° in 5° steps
-
DAG230S
- Dimensions, external (WxHxD)
- 100x180x67 mm
- Supply voltage
- 230 V AC
- Torque
- 32 Nm
- Control signal
- 2 - 3 point
- Running time, actuator
- 160 s
- Auxiliary switch
- Yes
- Damper shaft, round
- 10…20 mm
- Damper shaft, square
- 10…16 mm
- Damper shaft, min shaft length
- 50 mm
- Max damper size (area)
- 8 m²
- Frequency
- 50...60 Hz
- Power consumption in operation
- 4.8 W
- Power consumption in rest position
- 1.2 W
- Power consumption for wire sizing
- 4.1 VA
- Angle limitation
- 5...85° in 5° steps
-
DMG24S
- Dimensions, external (WxHxD)
- 100x180x67 mm
- Supply voltage
- 24 V AC/DC
- Torque
- 32 Nm
- Control signal
- Y1: 0(2)...10 V DC
- Feedback signal
- U: 0(2)...10 V DC
- Running time, actuator
- 240 s
- Auxiliary switch
- Yes
- Damper shaft, round
- 10…20 mm
- Damper shaft, square
- 10…16 mm
- Damper shaft, min shaft length
- 50 mm
- Max damper size (area)
- 8 m²
- Frequency
- 50...60 Hz
- Power consumption in operation
- 2.5 W
- Power consumption in rest position
- 0.3 W
- Power consumption for wire sizing
- 4.1 VA
- Angle limitation
- 5...85° in 5° steps
Specifications
| Appliance class | Class III, Class II |
|---|---|
| Protection class | IP44 |
| Protection class, additional information | IP54 with cable glands |
| Ambient humidity (non-condensing) | 5…95 % RH |
| Ambient temperature | -30…50 °C |
| Dimensions, external (WxHxD) | 100x180x67 mm |
| Weight, incl. packaging | 1.2 kg, 1.1 kg |
| Working angle, rotation | 90 ° |
| Damper shaft, round | 10…20 mm |
| Damper shaft, square | 10…16 mm |
| Max damper size (area) | 6 m² |
| Torque | 24 Nm |
| Frequency | 50...60 Hz |
