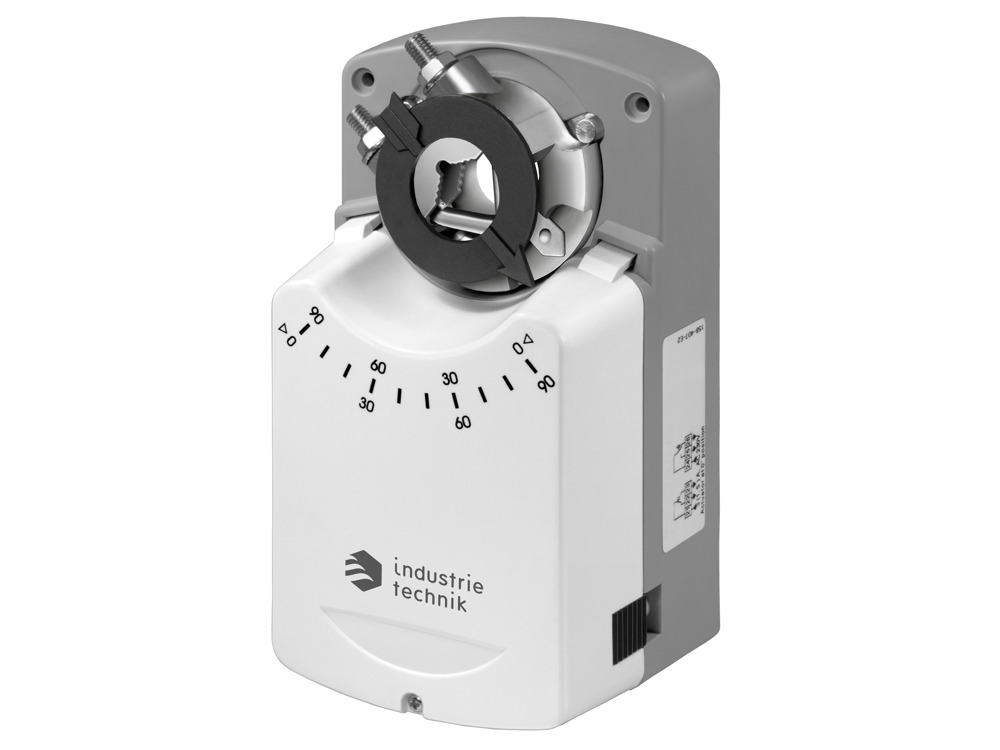

DAS230 Damper actuators without spring return, 8 Nm
Well-suited for applications with dampers (2 m2) in ventilation and air handling units.
Specifications
| Supply voltage | 230 V AC |
|---|---|
| Power consumption | 6.5 VA (4.8 W - Running / 1.2 W - Holding) |
| Control signal | 2-, 3-point |
| Feedback signal | -- |
| Running time, actuator | 30 s |
| Switching capacity (Auxiliary) | -- |
| Auxiliary switch | No |
| Damper shaft, min shaft length | 50 mm |
| Angle limitation | 5...85° in 5° steps |
| Appliance class | Class II |
|---|---|
| Protection class | IP44 |
| Protection class, additional information | IP54 with cable glands |
| Ambient humidity (non-condensing) | 5…95 % RH |
| Ambient temperature | -30…50 °C |
| Weight, incl. packaging | 1.2 kg |
| Working angle, rotation | 90 ° |
| Damper shaft, round | 10…20 mm |
| Damper shaft, square | 10…20 mm |
| Max damper size (area) | 2 m² |
| Torque | 8 Nm |
| Frequency | 50...60 Hz |
