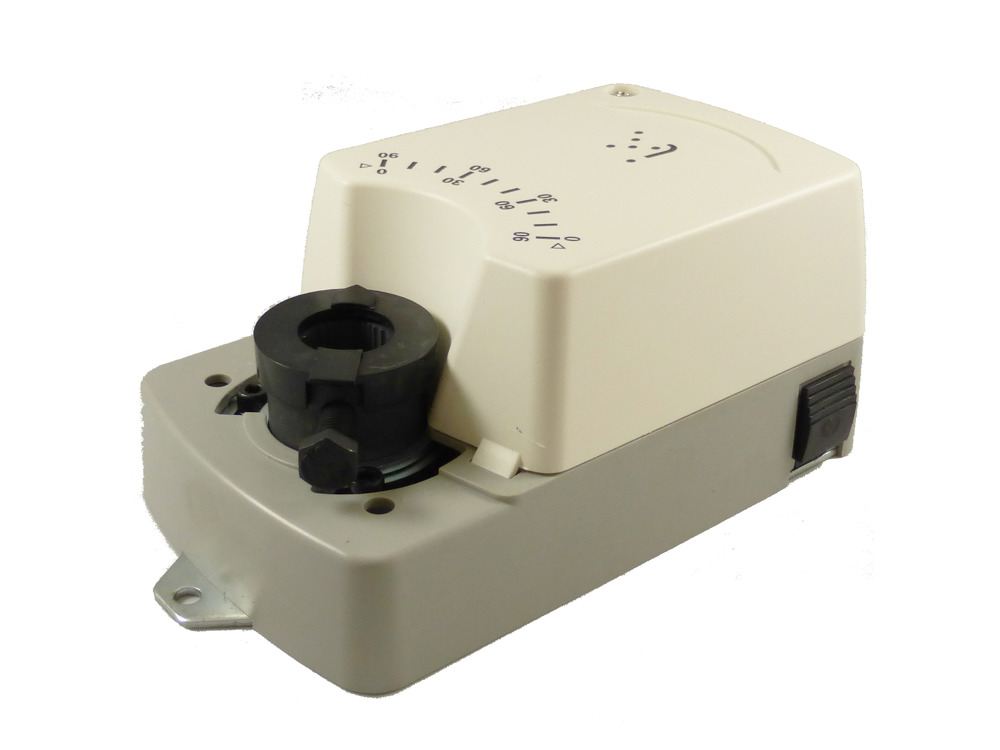

DAN230 Damper actuators without spring return, 4 Nm
Well-suited for applications with small dampers (up to 1 m2) in ventilation and air handling units.
Specifications
| Dimensions, external (WxHxD) | 95x146x65 mm |
|---|---|
| Supply voltage | 230 V AC |
| Torque | 4 Nm |
| Control signal | 2 - 3 point |
| Running time, actuator | 35 s |
| Auxiliary switch | No |
| Damper shaft, round | 10…16 mm |
| Damper shaft, square | 5…12 mm |
| Damper shaft, min shaft length | 50 mm |
| Max damper size (area) | 1 m² |
| Frequency | 50...60 Hz |
| Power consumption in operation | 4 W |
| Power consumption in rest position | 3 W |
| Power consumption for wire sizing | 5 VA |
| Appliance class | Class II |
|---|---|
| Protection class | IP44 |
| Protection class, additional information | IP54 with cable glands |
| Ambient humidity (non-condensing) | 5…95 % RH |
| Weight, incl. packaging | 0.9 kg |
| Working angle, rotation | 90 ° |
